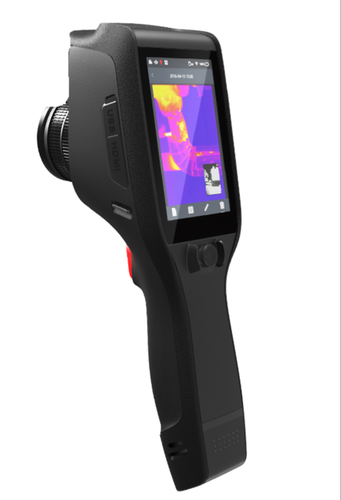

Guide D384F 智能热像仪 (384x288, -20℃~350℃)

IR resolution: 384×288 pixels

Detector type: VOx/25μm/7.5~14μm

Frame rate: 25HZ/9HZ

NETD: 45mk

Focal length: 19mm/F1.0

Field of view(FOV): 28.4°×21.5°

Spatial Resolution(IFOV): 1.29mrad

Min focus distance: 1m

Focus: Focus-free

Temperature range: -20℃~350℃

Accuracy: ±2℃ or ±2% of   reading for ambient temperature 15°C to 35°C and object temperature above   0°C

Measurement Area (IR/PIP): 5 X Spot; 2 X Line:; 5 X Area

Temperature range: Operating: -10℃~50℃; Storage: -40℃~70℃

Weight: 735g

Dimensions(mm): 274×97×78

Standard Accessories: Li-ion battery, Power supply adapter, Adapter plug, Wrist strap, USB cable, HDMI cable, Quick Start Guide, User Manual, Data Download Card,  Capacitive screen gloves, TF card (16GB), Hard transport case

Optional Accessories: Li-ion battery, Pouch, Battery charger, Tripod mount interface, Sunshield, Bluetooth earphone, Extended lens
