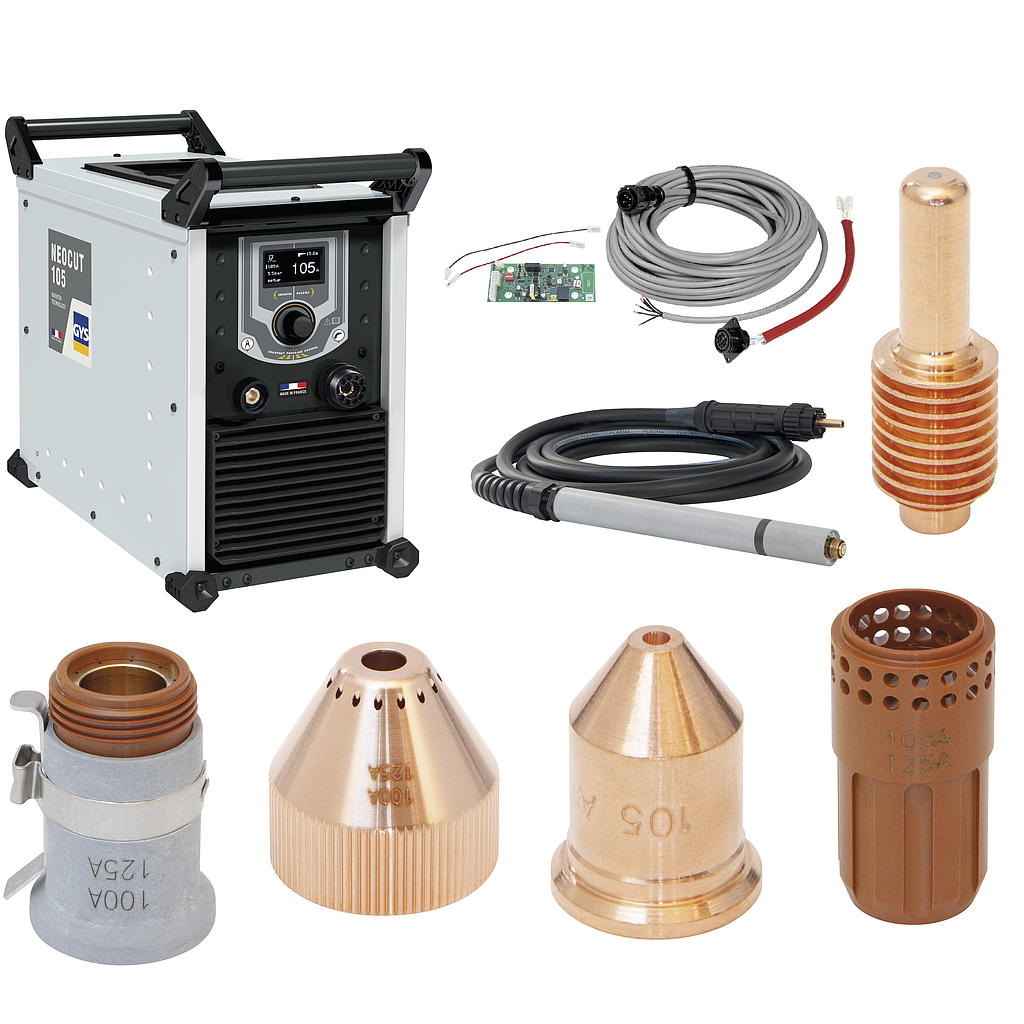

With a high capacity for manual or mechanised cutting, NEOCUTs are the ideal solution in industrial environments. Its 100% duty cycle up to 125 A enables it to cut parts up to 57 mm thick. Equipped with automatic air pressure management, they offer optimal cutting quality throughout the life of the consumables.
■ Automatic management of pressure and air flow according to the set current.
■ Six working modes: cutting, trigger-lock cutting, gouging, triggerlock gouging, cutting of perforated sheets and marking.
■ Marking mode, ideal for tracing and identifying parts.
■ No HF arc ignition to avoid electromagnetic interference.
■ Pre-wired for use on automatic cutting table (optional analogue/ digital CNC kit).
■ Monitored wear and tear of consumables (nozzle and electrode).
■ Easy software updates via USB cable with no tools or disassembly required.
■ OLED display and multilingual interface: easy to use, with all settings at the touch of a button.
Input voltage supply: 400 V - 3 ph, 50/60 Hz
Current: 32 A
Cutting current range: 20-105 A
Duty cycle (environment temp. 40°C)
@ 60%: -
@ 100%: 105 A / 122 V
@ 60%: 105 A / 142 V
@ 100%: 90 A / 136 V
No-load voltage: 356 V
Recommended air flow rate: 305 L/min (cắt thủ công)
Recommended air pressure: 5 > 9 bar
Protection class: IP 23
Recommended generator: > 30 kW
Dimensions (L x w x h): 69 x 40 x 61 cm
Weight: 33 kg
Standard: IEC 60974-1/10 A
Recommended manual cutter: MT-125
Connections 8mm, 10mm
Earth cable 4 m, 16 mm², 036932
Automatic torch AT-125, 12 m, 039520
CNC kit Digital 064737
