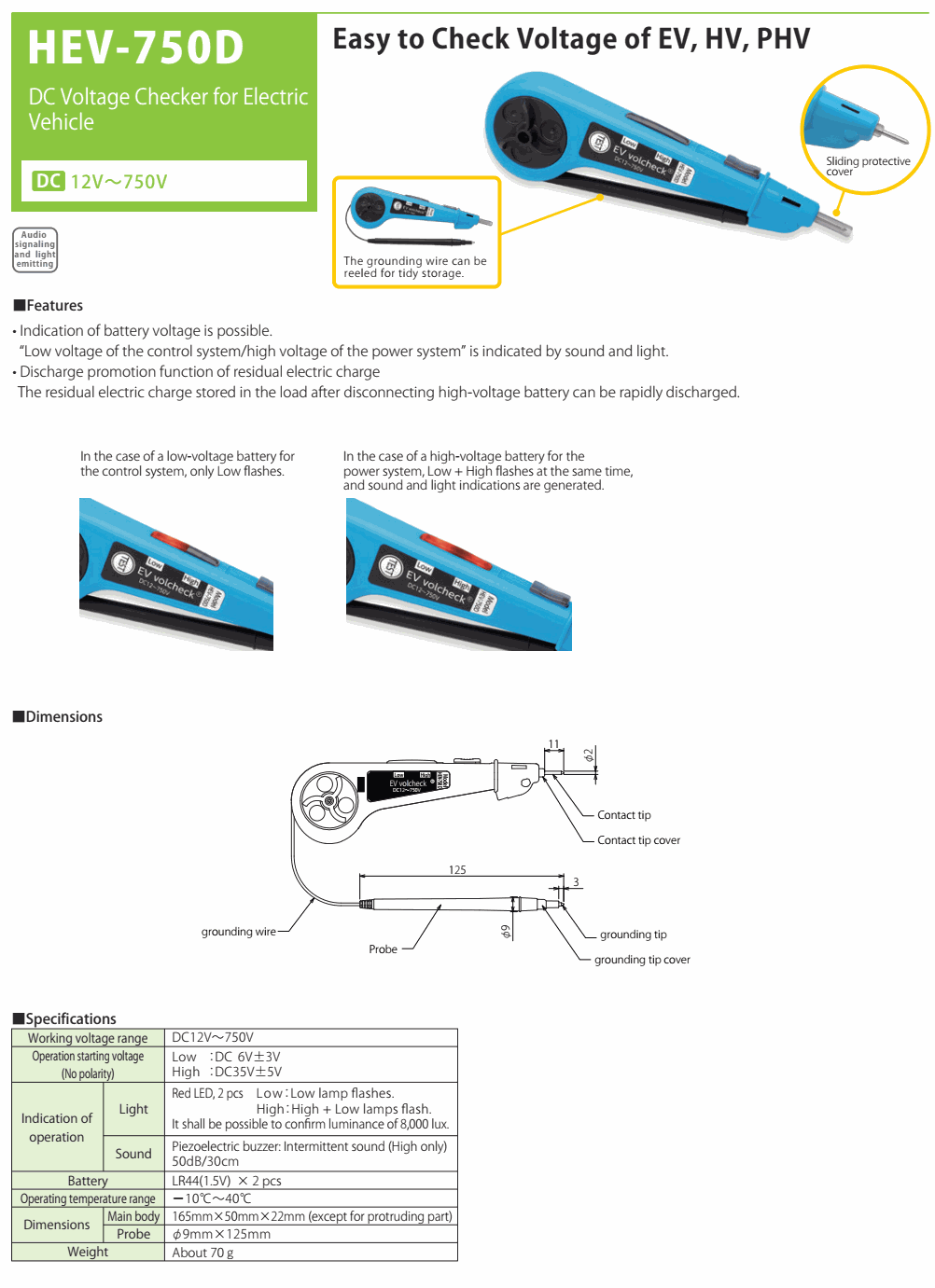

■ Specifications:
Working voltage range: DC12V～750V
Operation starting voltage (No polarity):
- Low ：DC 6V± 3V
- High ： DC35V± 5V
Dielectric strength: Between contact tip (metal fitting) and grip: 20 kVAC, 1 min
Leakage current: At dielectric strength test: 500 μA or less
Indication of operation:
- Light: Red LED, 2 pcs
Low：Low lamp flashes.
High： High + Low lamps flash.
It shall be possible to confirm luminance of 8,000 lux
- Sound: Piezoelectric buzzer: Intermittent sound (High only)
50dB/30cm
Battery: R03(1.5V) × 2 pcs
Operating temperature range: －10℃～＋40℃
Dimensions:
Main body: 165mm×50mm×22mm (except for protruding part)
Probe: φ9mm×125mm
Weight: About 70 g
■ Features:
• Indication of battery voltage is possible.
“Low voltage of the control system/high voltage of the power system” is indicated by sound and light.
• Discharge promotion function of residual electric charge
The residual electric charge stored in the load after disconnecting high-voltage battery can be rapidly discharged
