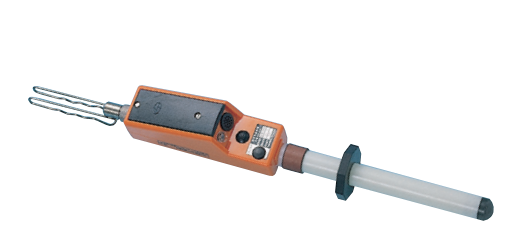

HASEGAWA HH-6A Audio signaling and light emitting type non-live-part indicator (AC3kV~7.2kV)

  • 制造商: HASEGAWA
    Model: HH-6A
    来源: Japan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




■ Specifications:

Working voltage range: AC3kV~7.2kV

Insulation resistance: Between contact tip (metal fitting) and grip, 100 MΩ or more

Dielectric strength: Between contact tip (metal fitting) and grip: 20 kVAC, 1 min

Leakage current: At dielectric strength test: 500 μA or less

Indication of operation:

- Light: It shall be possible to confirm luminance of 8,000 lux. Light is emitted in uncharged state

- Sound: 50 dB or more at a distance of 2 m. Sound is generated in uncharged state

Operating temperature range: -10℃~+40℃

Battery: R03(1.5V) × 2 pcs

Structure: Waterproof (Ingress of water is prevented.)

Weight: About 580 g

■ Accessory: Bag for housing

Details

■ Features:

• Shape of the hook makes it difficult to dislodge even in strong winds

Cataloge 2019
