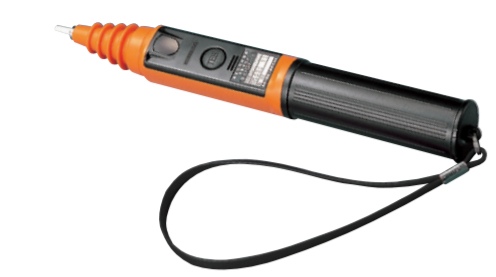

HASEGAWA HSF-7 高/低压检测器 (AC80~7000V)

  • 制造商: HASEGAWA
    Model: HSF-7
    来源: Japan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267

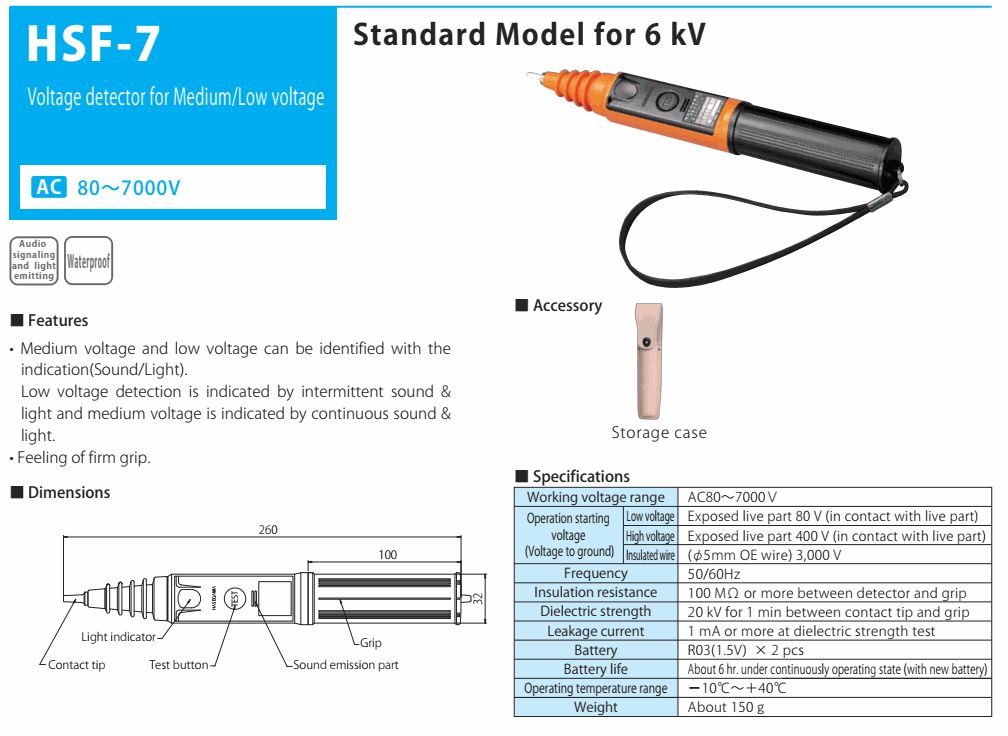

■ Specifications

Working voltage range: AC80~7000V

Operation starting voltage (Voltage to ground):

Low voltage: Exposed live part 80 V (in contact with live part)

High voltage: Exposed live part 400 V (in contact with live part)

Insulated wire: (φ5mm OE wire) 3,000 V

Frequency: 50/60Hz

Insulation resistance: 100 MΩ or more between detector and grip

Dielectric strength: 20 kV for 1 min between contact tip and grip

Leakage current: 1 mA or more at dielectric strength test

Battery: R03(1.5V) × 2 pcs

Battery life: About 6 hr. under continuously operating state (with new battery)

Operating temperature range: -10℃~+40℃

Weight: About 150 g

■ Accessory: Storage case


■ Features

• Medium voltage and low voltage can be identified with the indication(Sound/Light).

Low voltage detection is indicated by intermittent sound & light and medium voltage is indicated by continuous sound & light.

• Feeling of firm grip.
