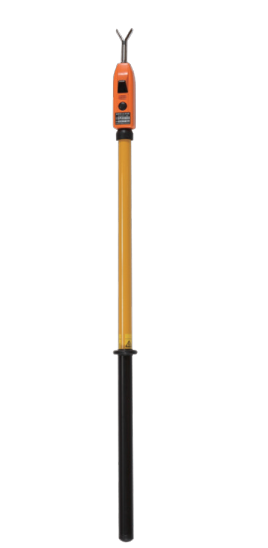

HASEGAWA HST-70 特高用検电器 (20kV～80.5kV)
制造商: HASEGAWA Model: HST-70 来源: Japan 保障: 12 Month - 联系

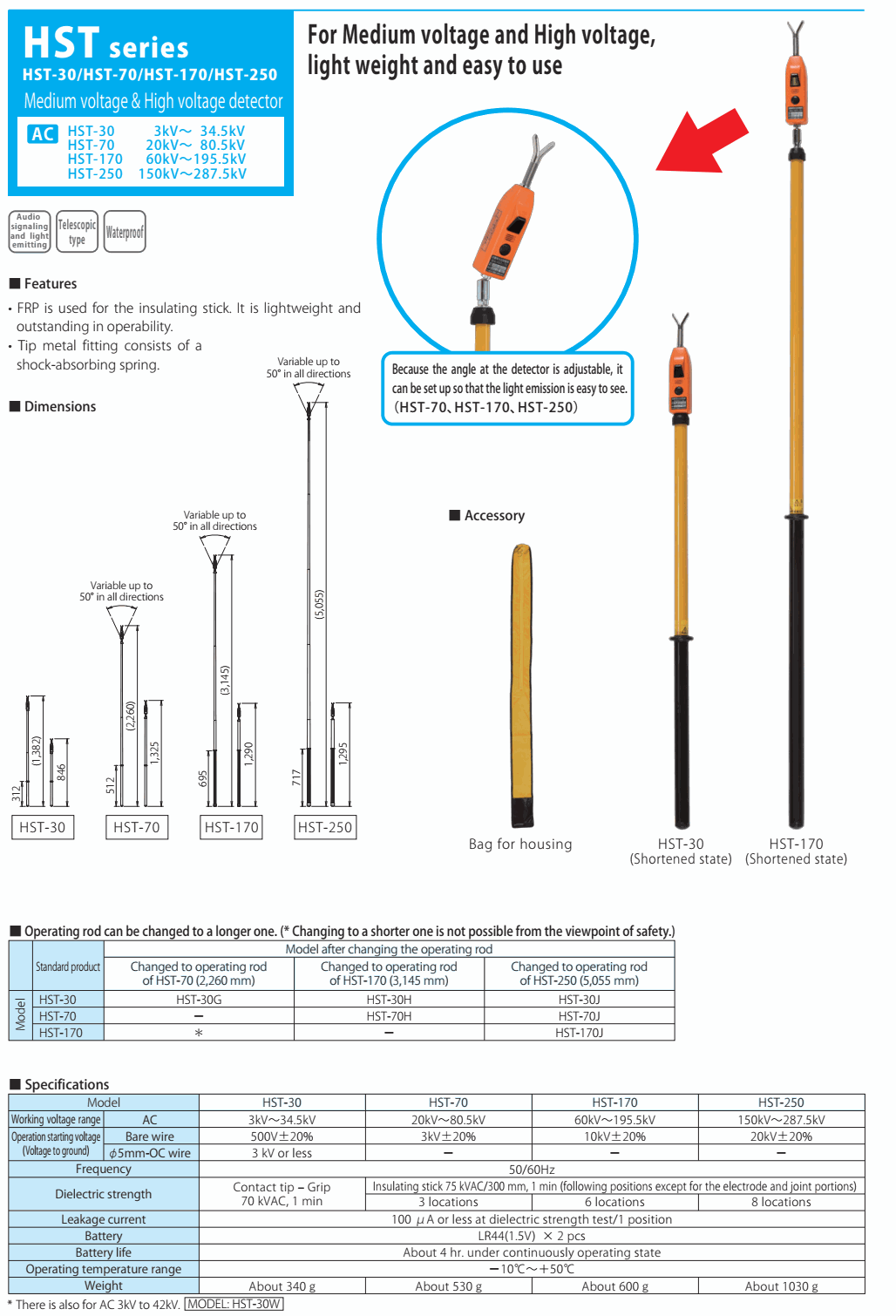

■ Specifications
Working voltage range: 20kV～80.5kV
Operation starting voltage (Voltage to ground): Bare wire: 3kV±20%
Frequency: 50/60Hz
Dielectric strength:
Insulating stick 75 kVAC/300 mm, 1 min (following positions except for the electrode and joint portions)
3 locations
Leakage current: 100 μA or less at dielectric strength test/1 position
Battery: LR44(1.5V) × 2 pcs
Battery life: About 4 hr. under continuously operating state
Operating temperature range: －10℃～＋50℃
Weight: About 530 g
■ Accessory: Bag for housing
Details
■ Features
• FRP is used for the insulating stick. It is lightweight and outstanding in operability.
• Tip metal fitting consists of a shock-absorbing spring.
