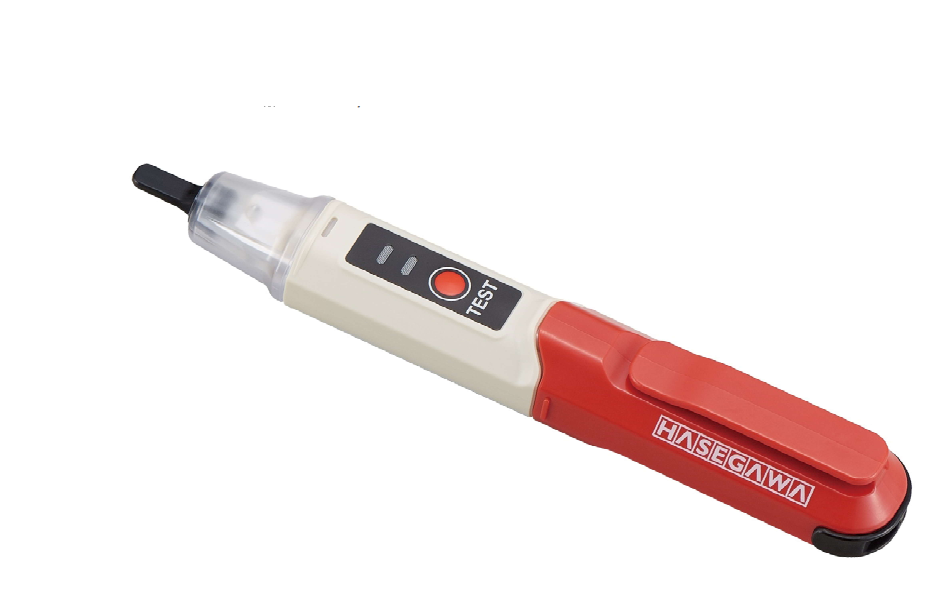

HASEGAWA HTE-700DL 低压电压检测器 (AC50V~600V; DC12V~750V)

Specifications

Working voltage range:

AC 50~600V

DC 12~750V

Frequency: 50/60Hz

Dielectric strength: AC2000V for1min

Leakage current: 0.5mA or less

Operation starting voltage [voltage to ground]:

- AC15V±5V; DC6V±3V:

Hold to grounding terminal by bare hands or connect a grounding wire to the ground [company standard].

- AC80V or less: grounding wire is necessary to detect DC.

Function of LED light: O

Operation status indication:

- Light: Continuous light emission in red: Verifiable at 8000Lx

- Sound: Continuous sound: 50dB or more[10cm apart]

Operation temperature range: -10℃~+40℃

Waterproof: equivalent to IPX4

Battery life [with new battery]:

- about 10hr[under continuously operating state without LED]

- about 1.5years[in unused state]

Weight: about 25g[except battery]

Battery: AAA battery [R03/LR03 1.5V] 1pce (Can not use rechargeable battery)


Details

Features

● Waterproof equivalent to IPX4(protection against splashes)

● Contact tip made of Conductive resin

●Short circuit prevention. Conductivity is not easily lost.

● Only for bare wire

(Can be used for bare conductor wire only. Can not be used for insulated conductor wire.)
