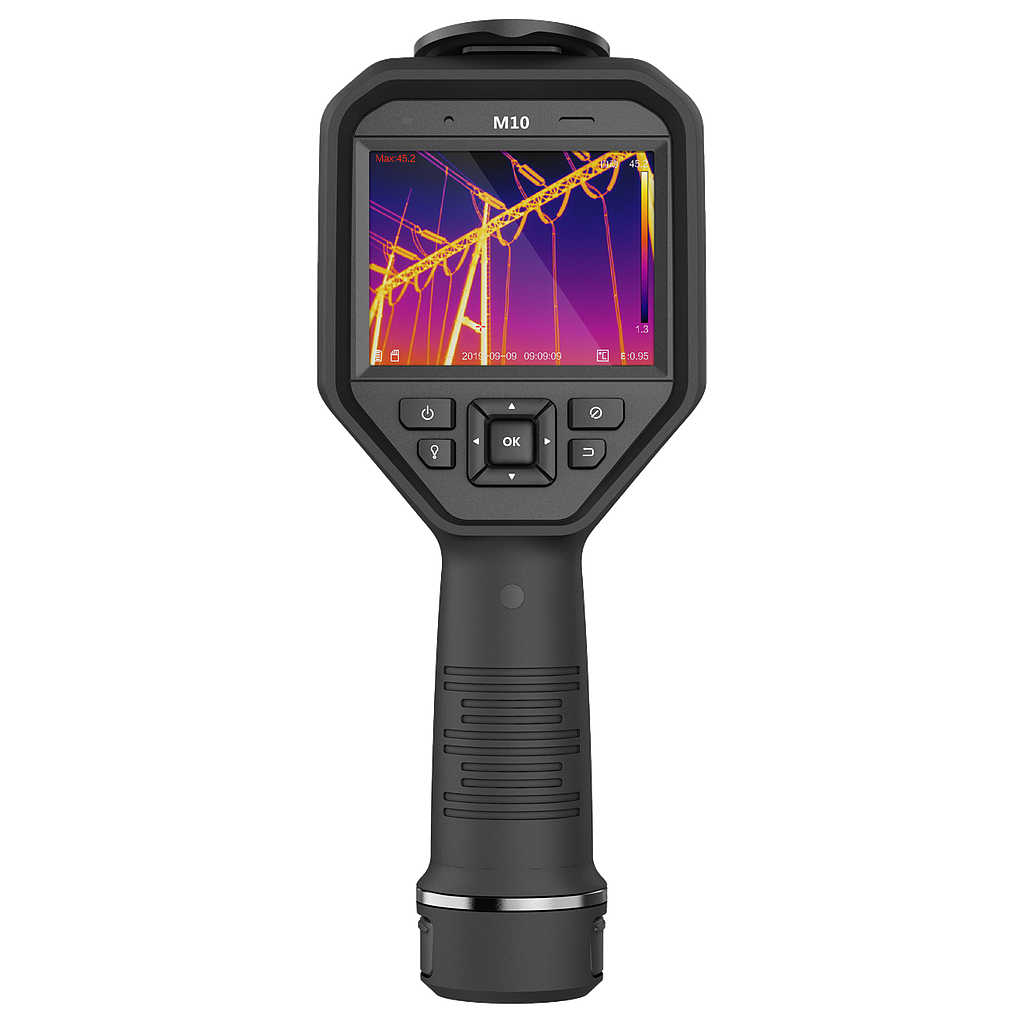

HIKMICRO M10 手持式热成像照相机 (-20~550°C; 160x120px; Zoom 4X)

Thermal Module

Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays

IR resolution: 160 × 120 (19 200 pixels)

Temperature measurement range: -20°C - 550°C (-4°F~1022°F)

Pixel pitch: 17μm

Spectrum range: 8-14μm

NETD < 40mK (@25°C, F#=1.0)

6mm lens

Thermographic accuracy: ±2℃ / ±2%

Focal length: 6.2mm

FOV (Field of View): 25°×18.7°

Minimum focus distance: 0.2 m (0.66 ft)

Focus: Manual

IFOV (Spatial Resolution): 2.74 mrad

Image frequency: 25Hz

Aperture: F1.1

Optical Module

Picture resolution: 2 MP, 5 MP, 8 MP

Video resolution: 640 × 480

Focus: Fixed

FOV: 25° × 18.7°

Display: 640 × 480 Resolution, 3.5’’ LCD Touch Screen

Digital Zoom: 4X

Storage

Storage media: Removable Micro SD Card (16 GB)

Image storage capacity: 30 000 Images

Image file format: JPEG with Measurement Data Included

Video storage capacity: 10 hours

Video file format: MP4

Power System

Power supply: 12 V DC/1.5A, 5V DC/2A (Charging via USB)

Power consumption: 4.2 W

Battery type: Dismountable and Rechargeable Li-ion Battery

Battery operating time: 5 Hours Continuous Running

General

Menu language: 18 Languages

Working temperature range: -20°C~50°C (4°F~122°F)

Storage temperature range: -20°C~60°C (-4°F~140°F)

Protection level: IP54

Drop Test Height: 2 m (6.56 ft)

Interface: USB Type-C

Weight: Approx. 653 g (1.44 lb)

Dimension: 244 mm × 100 mm × 104 mm (9.6"× 3.9"× 4.1")
