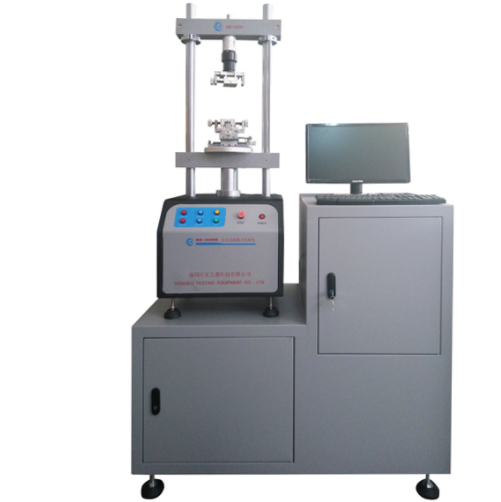

Hongdu HD-1220H Fully Automatic Plug Tester (400W)

Input power:  AC220VAC±10%, 5A, 50/60HZ

Output power: 400W

Detecting maximum force: 50Kgf

Accuracy level: 0.5 level

Speed range: 0.1-250mm/min

Speed accuracy: ±1%

Test bench movement maximum distance: 150mm

X, Y axis movement range: 0-75mm

Measuring the fine adjustment distance: 0.1mm

Drive: Servo motor

Dimensions: 450×370×1060 (Width × depth × height)

Weight: About 100Kg
