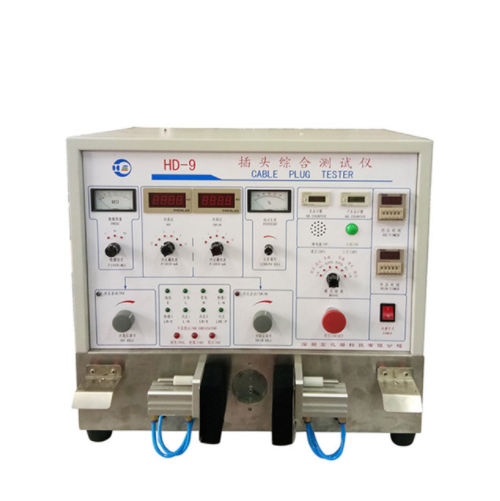

Hongdu HD-9 Plug Comprehensive Tester (0-5KV, 500VA)

High-pressure test

- The output voltage: External high pressure: 0-5kV, adjustable

                  Interelectrode high voltage: 0-5KV, adjustable

- Rated power: 500VA

- Wave shape:  50/60Hz AC sine wave

- Voltage calibration accuracy: ±5% Within

- Indicator header voltage: Switch: Zero level shift

                           Ratio: 1:25

                           Accuracy: ±3%

- Leakage current setting (Reference value): 0.5\1\3\5\10mA

- Current judgment accuracy: ±5%

Insulation test

- The output voltage: 500VDC

- Voltage calibration accuracy: ±5%

- Reference set point: 5/50/100MΩ

- Judgment accuracy: ±10%

- Indicator head accuracy: ±10%

- Measuring range: 0-200 MΩ
