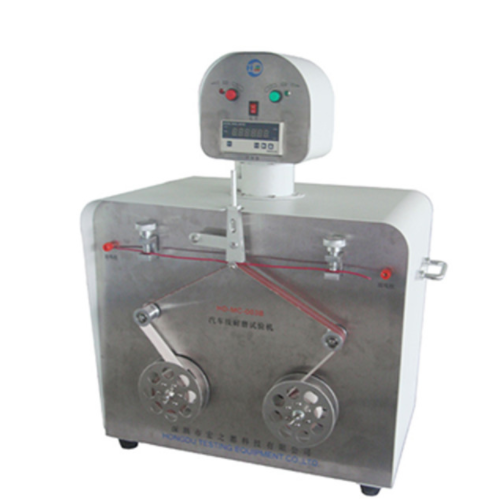

Hongdu HD-MC-003B 汽车线磨损试验机 (300W)

Input power: 220VAC±10%, 50/60Hz

Fuse: 3A/250VAC

Output power: 300W

Sandpaper angle: 29°±2°

Sandpaper speed: 1500±75mm/min constant speed

Support rod diameter: φ6.9mm,In contact with the sample at the bottom of the sandpaper

Total weight of support rod: 0.63N

Bracket groove curvature: R114mm

Weight (Selected according to different standards)

- SAE J1128: 0.22kg, 0.45kg, 1.4kg, 1.9kg

- ISO 6722-2002: 0.05kg, 0.1kg, 0.2kg, 0.5kg, 1.5 kg

- JISC 3046: 0.45kg, 1.35kg, 1.9kg

Sandpaper material: The model is optional according to the standard, and the width is about 25.4mm

Dimensions: 550×450×700 (Width × depth × height)

Weight: About 40Kg
