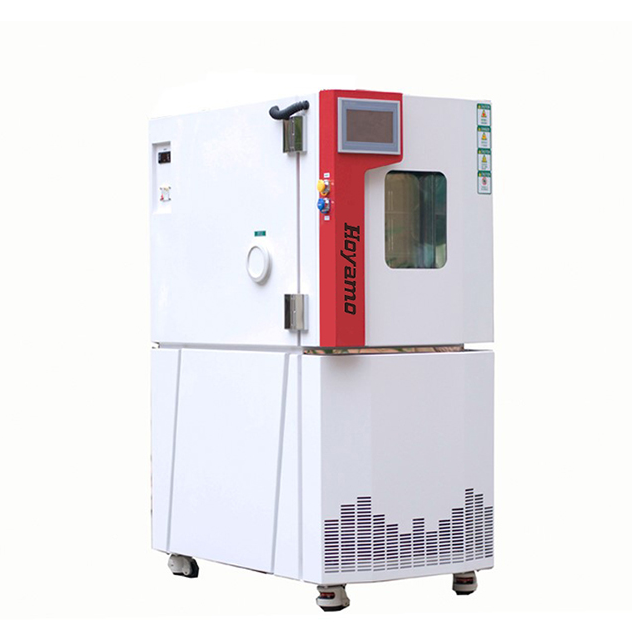

Hoyamo HTH-225 高低温试验箱 (225L)

Inner dimension(W*H*D)mm: 500*750*600

Internal volume(L): 225

External dimensions (mm): Please refer to the quotation for the outer box size!

Temperature range: Optional (B=-20℃~+150℃,C= -40℃~+150℃;D=-70℃~+150℃)

Humidity range: 10%~98%RH (Customizable low humidity range 5%~98%RH)

Temperature/humidity fluctuation: ±0.5℃

Temperature/humidity uniformity: ±1℃ , 5%RH

Temperature/humidity stability: 0.2℃ , 2%RH

Temperature/humidity deviation: ±2.0℃,  ±3%RH

Heating time: 3℃/min (Can be non-standard custom)

Cooling time: About 1℃/min(Can be non-standard custom)


Shell material: Cold rolled steel plate + baking paint treatment(SUS#304 Stainless steel, optional)

Liner material: SUS#304 Made of stainless steel

Insulation Materials: Rigid polyurethane foam

Refrigeration system: Well-known brand compressor

Protective device: No melting switch, compressor overpressure, overheat protection, overcurrent protection, overtemperature protection, overload protection, dry burning protection, water shortage protection, etc.

Power: AC220V/380V、AC3Ø、50/60HZ

Standard accessories: 1 test hole, 2 racks
