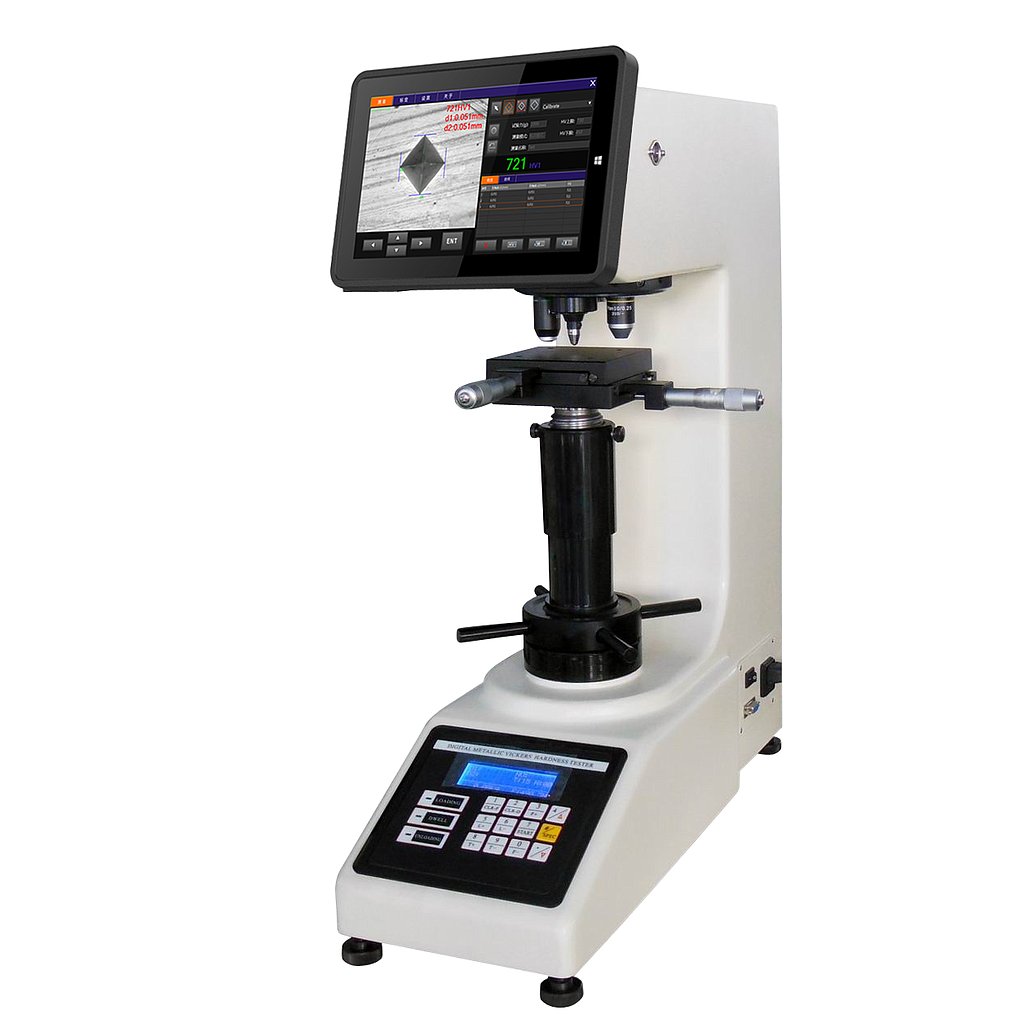

Hoyamo VH-50 视觉维氏硬度计 (1HV-2967HV)

Test Force:

Kgf: 0.5、1、2、2.5、3、5、10、20、30

N: 4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294

Optical System: Observe and Measure Objectives:10x/20x

Test Range: 1HV-2967HV

Turret: Auto Rotating Turret

Loading Control: Auto loading dwell and unloading

Dwell Time: 5-60s adjustable

Illumination: LED / Halogen adjustable

Measuring System: iVicky 3.0 Auto Measuring Vickers System

PC System:

Operation System: Win10

Screen size: 10.6”

CPU: Intel I3

USB: Double USB (could insert USB and soft dog)


Hard Disc: 32GB

Camera: 1.3MP Pixel, 1/2”CMOS Color Camera

Max Height of Specimen: 170mm

Instrument Throat: 130m

Power Supply: AC220V/50Hz; AC110V/60Hz

Dimension: 530x225x630mm

Packing Dimension: 630x460x710mm

Gross /Net Weight: 77Kg/56Kg

Execution Standard: ISO6507,ASTM E92,JIS Z2244,GB/T4340

Standard Delivery:

  • Vickers Intender

  • Φ100mm Working Stage

  • Hardness Block (700~800)HV30

  • USB Converting Cord

  • Hardness Block (400~500)HV5

  • 10x Mechanical Eyepiece

  • 10x Measuring Objective

  • 20x Measuring Objective

  • Vickers Hardness Vision Measurement

  • Warranty Card / Qualified Certificate

  • Dust Cover

  • Toolbox

  • Power Cord

  • Pad Adapter

  • Operation Manual / Packing List

Optional Accessories:

  • X-Y Cross Anvil

  • Digital Micrometer Head

  • Unequal Specimen Clamp

  • LCD Display

  • Thin-Piece Clamp

  • Flat Precision Clamp

  • Filament Clamp

  • Heavy Anvil

  • V-shape Anvil

  • USB CMOS Camera

  • Camera Adapter

  • Vickers Measuring Software
