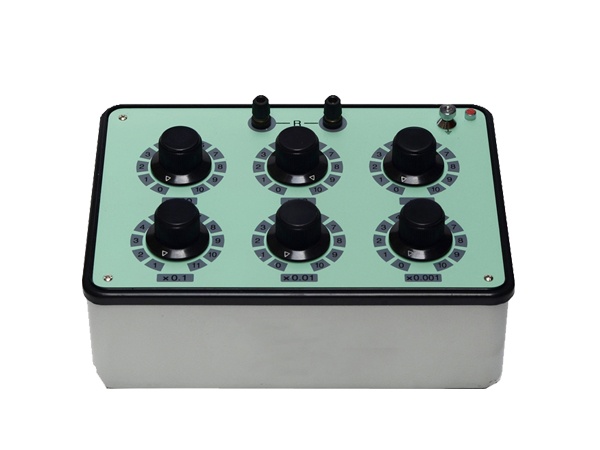

HV HIPOT GD-DZX 直流标准电阻箱 (0.1~1111.210Ω)

Minimum resistor:0.1Ω

Minimum step value: 0.001Ω

Resistance value adjustment range: 0.1~1111.210Ω.

The reference temperature and nominal temperature of the resistor shall comply with the following regulations:

• Reference temperature: 20 ± 0.5 ℃;

• Nominal temperature: 20 ± 5 ℃.

The reference humidity and nominal humidity of the resistor shall comply with the following regulations:

• Reference relative humidity: 40% to 60%;

• Nominal relative humidity: 25% to 75%.

The insulation resistance between circuit and panel is ≥500MΩ.

Between circuit and panel, can withstand a frequency of 50HZ, 2000V sine wave AC voltage, does not breakdown for 1 minute.

Dimensions: 280*200*120mm.

Weight: 1.5kg
