Function: AC/DC current measurement, peak current hold, online monitoring
Power: 6V DC(LR6 1.5V*4 alkaline dry batteries, continuously working for 12 hours)

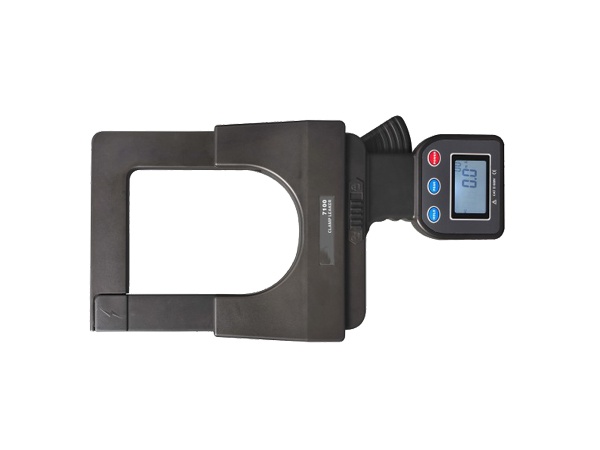

Test mode: Clamp CT, non-contact measurement
Clamp size: 108mm*148mm (clamp electric cable of diameter 80mm, or 160mm*4mm flat cable and steel earth wires)
Measurement range: AC: 0.0A~1000A; DC: 0.0A~2000A
Resolution: 0.1A AC/DC
Measurement Accuracy :
- 0.0A-999A: ±2%±5dgt
- 1000A-1499A: ±3%±5dgt
- 1500A-2000A: ±4%±5dgt
Standard condition: 23℃±3℃, ≤75%RH, measured wire is at the center of the clamp.
Frequency response: AC: 45Hz～400Hz
Sampling rate: About 2 times/second
Measured wire position: Measured wire at approximately the geometric center of the clamp, max. Off-center error is 2%rdg.
Display mode: 4-bit LCD display, display area 47*28.5mm
Polarity indication: Automatic recognition under DC current detection, displayed with “-”.
Range shift: Automatic switching.
Line voltage: Below AC 600V line measurement
Software: Stored data can be uploaded to PC via software.
USB interface: With USB interface, wire 1.5m.
Data storage: Can store 99 groups of data, “FULL” indicates full storage.
Peak hold: Peak capture and peak hold function, press “HOLD” for long to show the peak value.
Data hold: “HOLD” symbol appears.
Overflow: “OL” symbol appears.
Automatic shutdown: Automatically shutdown about 5 minutes after power on to reduce battery consumption
Battery voltage: Low battery symbol appears to remind the replacement of battery when battery voltage drops below 4.6V.
Meter size & weight: 350*180*55mm(L*W*H); Meter: 1.5kg(with battery), package: 2.6kg(with accessories)
Working current: 20mA
Environment: Working: -10℃~40℃, ≤80%RH; storage: -10℃~60℃, ≤70%RH
Insulation strength: AC 3700kV/rms (Between the rear cover screw and the housing)
Safety compliance: IEC1010-1, IEC1010-2-032, class 2 of pollution, CAT III (600V)
