Test condition: MOV: 1mA±5μA; 0.75U1mA≤±1%±1d;
Output: Voltage: 0~2100V; Current: 0~1.5mA
Measurement range: 20~2000V; 0~1000μA
Measurement accuracy: ±2%rdg±3dgt; ±2% rdg±10dgt
Resolution: 1V; 0.1uA
Output: Voltage 0~2100V/1.5mA
Measurement range: 20~2000V
Measurement accuracy: ±2%rdg±3dgt
Measurement range: 0.5MΩ~3000MΩ
Measurement accuracy: ±3%rdg±10dgt
Measurement range & Accuracy
Power supply: DC 7.2V 2600mAh Rechargeable lithium battery. (Stand-by for more than 3 hours)
Test method: DC voltage drop method
Gear shift: Fully automatic gear shift
Display mode: Color touch screen

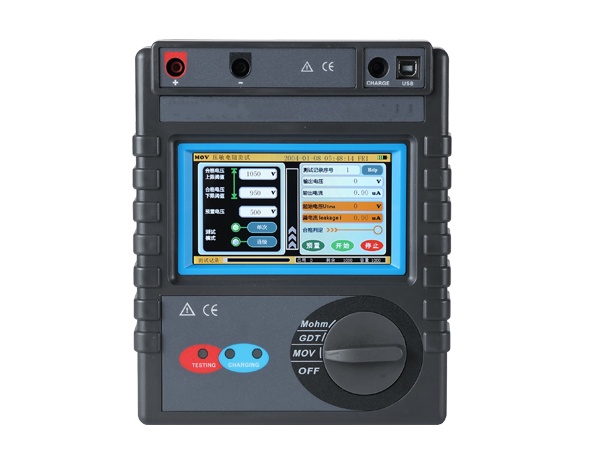

Main unit: 212*175*76mm
Over-voltage protection: Available
Data storage: For MOV: 1000 groups;
For GDT: 1000 groups;
For insulation resistance: 1000 groups
Intuitive display of memory in use and available memory.
Data review: Available
Over-flow indication: Over-flow indication by symbol “9999.99”.
Test mode: “Once”: one-key test, no need to preset.
“Conti.”: Preset voltage, then tests are done continuously.
Data upload: Data in Excel format is exported to PC via USB port.
Battery voltage: Battery power indication. Charging reminder is shown when there is low battery voltage.
Auto shut-down: Auto shut-down after 15 minutes of no operation.
Power consumption: Stand-by: 140mA; measurement: 830mA
Main unit x 1 set
Test line x 2pcs
Alligator clip x 2pcs
Probe x 2pcs
Charger (12V/2A) x 1pc
USB communication line x 1pc
CD x 1pc
Carrying case x 1 set
User’s guide x 1 copy
Warranty card x 1 copy
Factory test report x 1 copy
