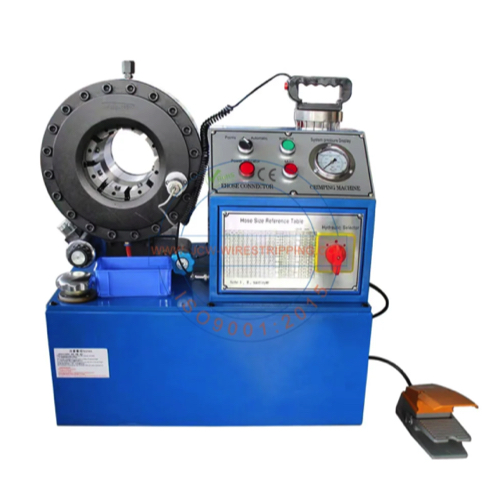

JCW 120D 液压软管压接机 (200 T, 3-80 mm)
制造商: JCW Model: 120D - 联系
H.C. Material: 3-80 mm
Conductor cross-section: Forge Steel (Cr40)
Max. Hydraulic hose: 2", 4SP (ID 51MM)
Max opening: + 25 mm
Crimp force: 200 T
OEM: Yes
Die sets: 10 sets
Open cycle: 4.5 seconds
Open without dies: 118 mm
Accessible diameter: 118 mm
Master die length: 80 mm
System pressure: 31.5 MPa
Control: Automatic / Semi-automatic
Power supply: AC 110 - 480V
Rated power: 4 KW
Noise level: 65 dB(A)
Dimensions:
Weight: 220 KG
Details
• Cr40 forge steel made H.C, more than 6 months aging treatment
• 2mm thick hardened layer
• Pipeless hydraulic valve-block connection
• Stable pressure conduction fits in any workshop
• Semi-auto mode achieves accurate crimping
• Fully-auto mode enables batch crimping
