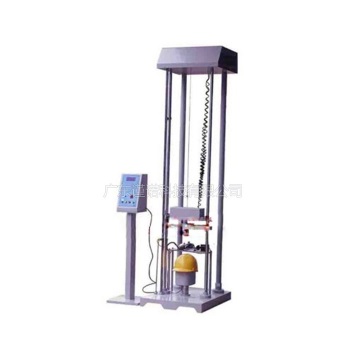

Jinuosh L-M001 Hard Hat Helmet Impact Test Machine (5000N, 1m)

Steel hammer weight: 5kg ± 0.01kg,

The hammer head is hemispherical: 96m in diameter.

Height of drop weight: 1m

Maximum force sensor: 5000N,

Frequency response: 5~1000Hz

Head mold: one each for No. 2 and No. 5 (optional), in line with GB2811 Appendix A

Display: LED digital display, automatically maintain the maximum force value

Lifting device: electric type, upper and lower limit

Steel cone: Material 45# steel, weight 3+0.05KG, cone angle 60 degrees, cone tip radius 0.5mm, cone minimum length 40mm, cone tip hardness HRC45
