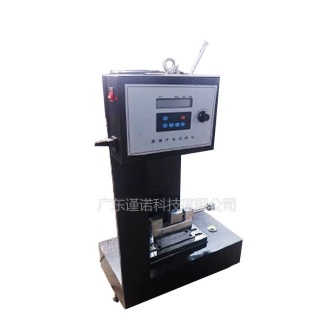

Jinuosh L-SXXBL 悬臂梁冲击试验机 (2.75~22J, 150°, 3.5m/s)

Impact speed: 3.5m/s

Pendulum energy: 2.75J, 5.5J, 11J, 22J (the customer can choose a hammer head)

Pendulum angle: 150°

Strike center distance: 0.335m

Pendulum torque: pd1=0.53590Nm, pd11=5.8949Nm, pd2.75=1.47372Nm, pd22=11.7898Nm, pd5=2.94744Nm

The distance from the impact blade to the upper jaw: 22±0.2m

The radius of the blade fillet: R=0.8±0.2mm

Energy loss: 1J<0.02J, 11J<0.05J, 2.75J<0.03J, 22J<0.1J, 5.5J<0.03J

Operating temperature: 15-35°C

Power: 220V/50Hz
