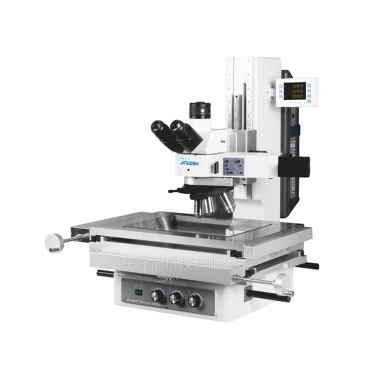

Jinuosh MU500 金相显微镜 (300x200x200mm)

Measuring Range:

   X-axis: 300 mm

   Y-axis: 200 mm

   Z-axis: 200 mm

X/Y measurement accuracy: 1.5um+L/150

Z axis measurement accuracy: 1.0um+L/150

Instrument Main Body: Marble base, column, work table

Transmisson System: Precision Grinding of C3 ball screw

Monitor: 21.5 " liquid crystal display

Power supply: 220V+10%(AC) 50Hz

Ambient temperature: 20 ~25°C

Relative humidity: <75%

Configuration:

MU-500 Coarse and Precise Focus Unit

300x200mm Precise Stsge

U-Bracket Mount LV

LV-TI 3 Trinocular Eyepiece Tube

Quadruple Nosepiece,For 5 sets of Objectives

Eyepiece CFI 10x

5W LED Point Ligte built-inTransformer for piscopic Illumination

F-P Simple Polarizign Unit (For Episcopic Illumination)

DIC Prism

Power Supply (220V)

Photo Adapter

Axle counter

DS-Vil Color Camera Head

Measuring software measures accuracy0.1um

M Plan Apo HL 5X

M Plan Apo HL 10X

M Plan Apo HL 20X

M Plan Apo HL 50X

21.5 "HD display

DS Camera I/F Cable 20-26

USB A TO B CABLE

POWER CORD
