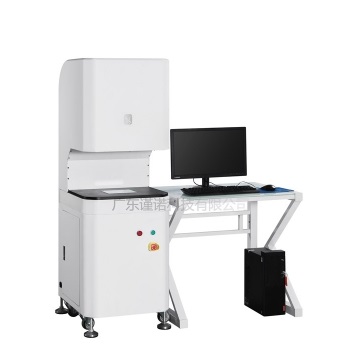

Jinuosh T100H 尺寸测试设备 (立式) (100, 30mm)

Field of vision: 90mm×60mm

Measurement accuracy: ±3µm

Repeatability: ±1.5µm

Instrument dimensions: 600×500×1550

Instrument weight: 160KG

Platform load bearing: 15KG

Image Sensor: 20 million pixel CCD

Lens: bilateral telecentric lens

Maximum workpiece height: 100mm

Lens working distance: 260mm

Lens depth of field: 30mm

Light source system: Parallel backlight

Software: JN-AOS. 2. 0

Computer setup: CPU 13 processor 4G memory

Monitor: 21.5-inch LCD monitor

Signal output: Judging the output PASS FAIL NULL

Working environment: 25°C±2℃ 20% to 80%RH

Measuring speed: ≤3 seconds (within 100 dimensions)

Voltage: AC100-240V 50/60Hz
