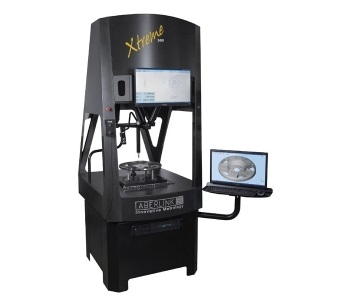

Jinuosh Xtreme-350 三坐标 (300x300x200mm)

Measuring range (mm): X: 300; Y: 300; Z: 200

Cylinder diameter (mm): 359

Dimensions (mm) X: 790; Y: 900; Z: 2030

Dimensions (mm) X: 995; Y: 1060; Z: 2030

Air accuracy (precision type): (2.5 +0.4L/100) µm

Spatial accuracy (ordinary type): (3.0 +0.4L/100) µm

Resolution: 0.5µm

Using temperature range: 0 -45℃

Workbench: Marble platform

Maximum speed (precision type): 500mm/sec

Maximum speed (LM type): 400mm/sec

Maximum acceleration (precision type): 750mm/sec

Maximum acceleration (LM type): 650mm/sec
