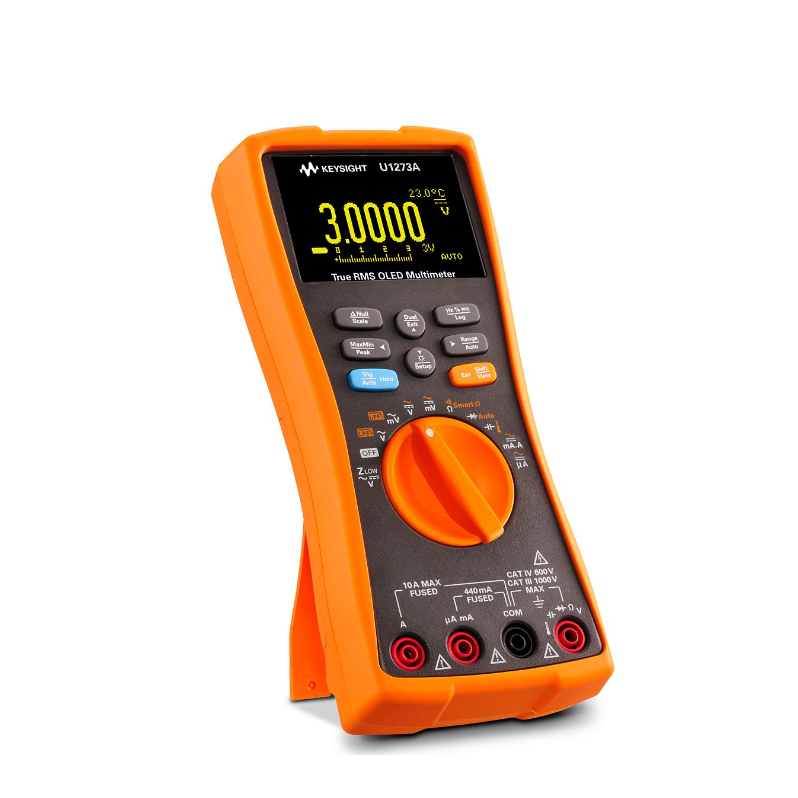

KEYSIGHT U1273A 手持式数字万用表

- High Resolution

- True RMS AC, DC

- Display resolution 30,000

- AC bandwidth: 100Khz

- Voltage DC:

  30.000mV, 300.00mV, 3.000V,

  30.000V, 300.001V, 1000.0V/ 0.05%

- Voltage AC (True RMS):

  30.000mV, 300.00mV, 3.000V,

  30.000V, 300.001V, 1000.0V / 0.6%

- Voltage AC +DC (True RMS):

  30.000mV, 300.00mV, 3.000V,

  30.000V, 300.001V, 1000.0V / 0.7%

- Current DC:

  300.00 μA, 3000.00 μA, 30.000 mA,300.00 mA /0.2%

  3.0000 A, 10.000 A /0.3%

- Current AC (TrueRMS):

  300.00μA, 3000.00μA, 30.000mA, 300.00mA /0.6%

  3.0000 A, 10.000 A /0.8%

- Current AC+DC (True RMS):

  300.00 μA, 3000.00 μA, 30.000 mA,

  300.00 mA, 3.0000 A, 10.000 A /0.9%

- Resistance:

  30.000Ω, 300.00Ω, 3.0000kΩ, 30.000kΩ, 300.00 kΩ / 0.2%

  3.0000MΩ, 30.000MΩ, 100.00MΩ, 300.00 MΩ, 300.00 nS /0.6%

- Diode: Yes

- Capacitance: 1

  0.000nF, 100.00nF, 1000.0nF, 10.000μF,

  100.00μF, 1000.0μF, 10.000mF /1%

- Frequency: 99.999-999.99Hz / 0.05%

- Thermocouple type: J (-200 to 1372oC), K(-210 to 1202oC)/ 1%

  (Option type J)

- % Sacle 4-20mA: Yes

- Low pass low filter: Yes

- Z low – low impedance mode: Yes

- Smart Ω: Yes

- OLED display: Yes

- Manual data logging: yes

- PC connectivity: IR-USB (option)

- Connectivity: IR-to-Bluetooth (option)

- Dust and water resistant casing: IP 54

Power supply: 4 pin AAA

Dimensions: 207.0x92.0x59.0

Include: Standard test leads, test probes with 4-mm tips, K-type thermocouple and adapter, 4x AAAbatteries Certificate of Calibration, UK 6 (test report), Quick Start Guide

Detail

View Data Sheet

U1162A

Alligator clip

U1163A

Grabbers, SMT

U1164A

Test probes, fine tip

U1168B

Test lead kit

U1169A

Test Probe Leads (with 19-mm tips and 4-mm tips)

U1171A

Magnetic hanging kit

U1172A

Transit case for handheld DMM, aluminum-clad

U1173A

Cable, IR to USB

U1174A

Carrying case, soft

U1177A

Bluetooth adaptor

U1181A

Immersion probe type K

U1182A

Surface probe, industrial

U1183A

Probe, air

U1184A

Adaptor, temperature probe

U1185A

Thermocouple (J-type) and adaptor

U1186A

Thermocouple (K-type, 1m) and adapter

U1583B

AC current clamp
