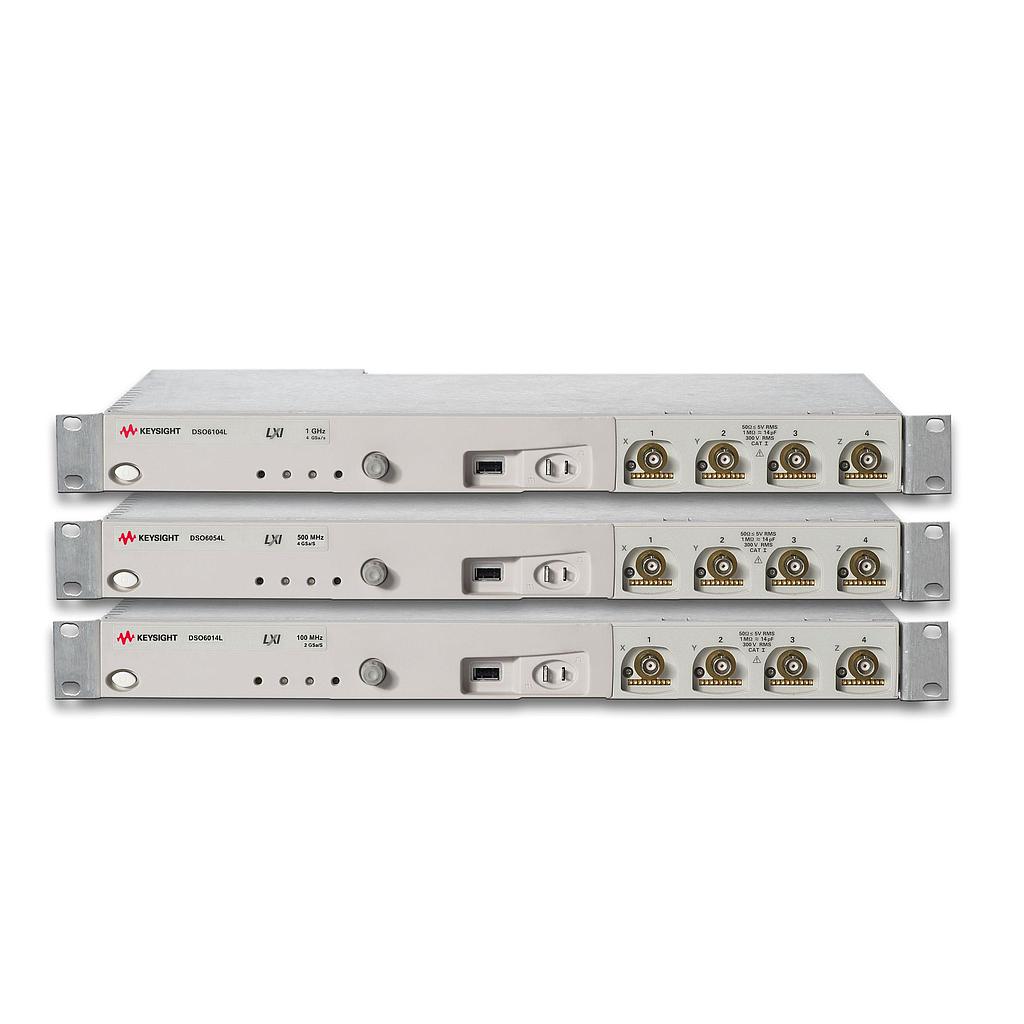

KEYSIGHT DSO6104L 示波器 (1GHz, 4CH analog)

Channels: 4 Analog Channels

Bandwidth: 1 GHz

Input impedance: 1 MΩ ± 1% || 14pF hoặc 50 Ω ± 1.5%, tùy chọn

Vertical resolution: 8 bits

Max Sample Rate:  4 GSa/sec half channel, 2 GSa/sec each channel

Memory depth: 2 channels/4 channels: 8 Mpts/4 Mpts

Trigger mode: Auto, Normal, Single

Standard ports: USB 2.0 high speed, 10/100-BaseT LAN, IEEE488.2 GPIB, XGA video output

Physical size 43.5 cm W x 27 cm D x 4.2 cm H (without brackets)

Weight Net: 2.45 kg (5.4 lbs.) Shipping: 6.2 kg (13.6 lbs.)

Power: 100-240V, 50/60Hz

Details

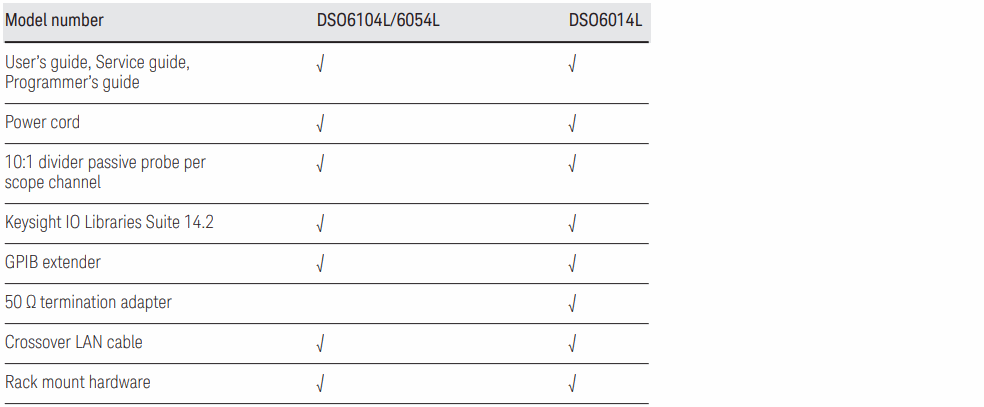

Included

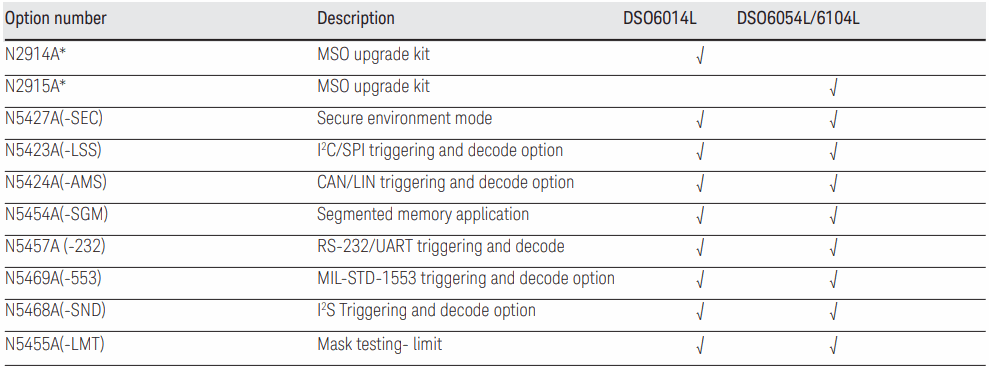

Option


Datasheet
