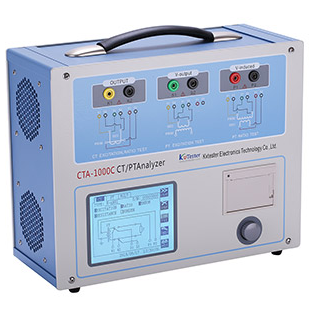

KVTESTER CTA-1000 CT/PT测试仪

Output : 0~180Vrms,12Arms,36A(peak value)

Voltage measurement accuracy : ±0.1%

CT Ratio Range 1~40000 accuracy ±0.05%

PT Ratio Range 1~40000 accuracy ±0.05%

Phase Range ±2min accuracy 0.5min

DC resistance Range 0~300Ω accuracy 0.2%±2mΩ

Burden Range 0~1000VA accuracy 0.2%±0.02VA

Power supply AC220V±10%/AC110V±10%,50/60Hz

Environmental Conditions

Operating temperature: -10℃~50℃

Humidity:≤90%

Weight and Dimensions

Dimensions:365mm×290mm×153mm

Weight:≈10kg
