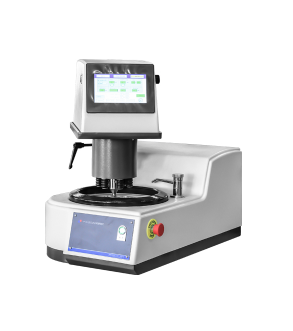

LABTT LAP-2000 全自动金相研磨抛光机 (50-1000r/min)

Working disc diameter: standardφ254mm（optionalφ230mm, φ203mm）with magnetic switchboard system

Rotate speed: 50-1000r/min The forward and backward rotation can be switched

Three level constant speeds:V1=300r/min V2=500r/min V3=800r/min，can customize it

Grinding head speed: 30-200r/min

Smaple holder: Standard φ30mm 6 pcs（optional φ40-φ50mm 3 pcs，others can be customized）

Autiomatic mode: Can be programmed eight speed, running time and grinding wheel steering switch。

Smaple quantity: standard 6pcs of φ30

Working air source pressure range: Not less than 0.6MPa

Sample pressure range: suggestion:0.2-0.3MP

Input voltage: AC220V，50/60Hz

Motor power: 0.75Kw

Dimension: 760 x 730 x 700

Weight: 74kg
