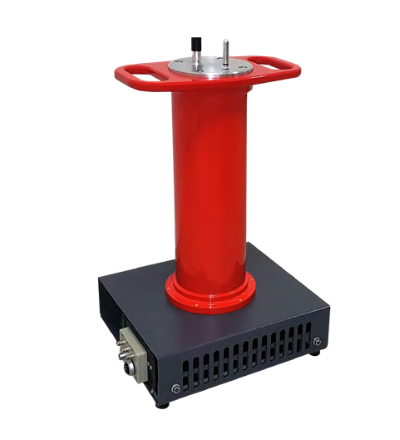

MEGGER PDS 62-SIN 便携式局部放电检测定位系统

Voltage

Operating max. 62kVpeak

Type VLF sine wave (0.01Hz - 0.1Hz)

Capacity of HV coupling

capacitor                               25nF

Sensitivity range 2 pC ... >100 nC

PD self-noise level < 2 pC

PD impulse repetition range 100 kHz

PD localization

Measuring range 0 ... 16,000 m | v/2 = 80 m/μs

Propagation velocity v/2 50 ... 120 m/μs

Sampling rate 125 MHz (8 ns)

Bandwidth 3 / 20 MHz (switchable)

Accuracy 1% of the cable length

Resolution ± 1 pC / ± 1 m

Filtering attachable HF filter (max. 1A)

Power supply Via supplied power supply 90 ... 264 VAC, 50/60 Hz

Weight 14,5 kg

Dimensions (W x D x H) 36 x 33 x 64 cm

Temperature Operation -20 °C ... 55 °C

Storage -40 °C ... 70 °C

Relative humidity 93% at 30 °C (non-condensing)

PD calibrator

Pulse level 100pC, 200pC, 500pC, 1nC, 2nC,  5nC, 10nC, 20nC, 50nC, 100nC

Pulse frequency 50 Hz, 60 Hz, 100 Hz or via  Light triggered sensor

Power supply 9-volt block battery

Weight 410 gr

Dimensions (W x D x H) 195 x 85 x 35 mm

Temperature Operating -10 °C ... 50 °C Storage -30 °C ... 70 °C
