METONE 076B-1 风扇吸入式辐射屏蔽 (115VAC; 20watts)

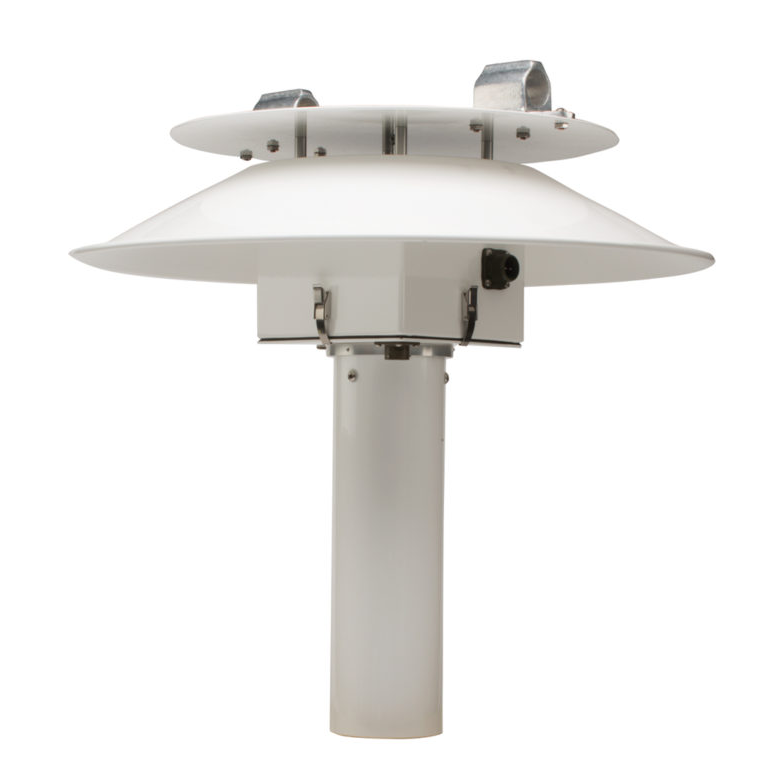

The 076B-1 Fan Aspirated Radiation Shield protects temperature and humidity sensors from direct and indirect radiant energy.

Operating Characteristics

Aspiration: Electric fan

Flow Rate:

  • 1000ft/min scrubbing

  • 500ft/min sample

Temperature Range:

  • Standard: -50~85°C (-67~ 185°F)

  • Optional: -50~100°C (-67~ 212°F)

Power Required: 115VAC; 20watts

Sensors

Maximum Number: Four

Models Numbers: 061/085/T-200A

Maximum Diameter: 0.75in (1.9cm)

Maximum Length: 10in (25cm)

Transducer Sensing Zone: 8in (20cm)

Physical Characteristics

Weight: 9.3lbs (4.2kg)

Dimensions (HxD):  20in(51cm)x20in (51cm)

Cable & Mounting

Signal: PN 2144 Cable Assembly; specify length in feet or meters

AC Power: PN 1954 Cable Assembly; specify length in feet or meters

DC Power: PN 2423 Cable Assembly; specify length in feet or meters

Mounting: Mounts to 3/4 in. IPS horizontal pipe

Details

Datasheet


Manual
