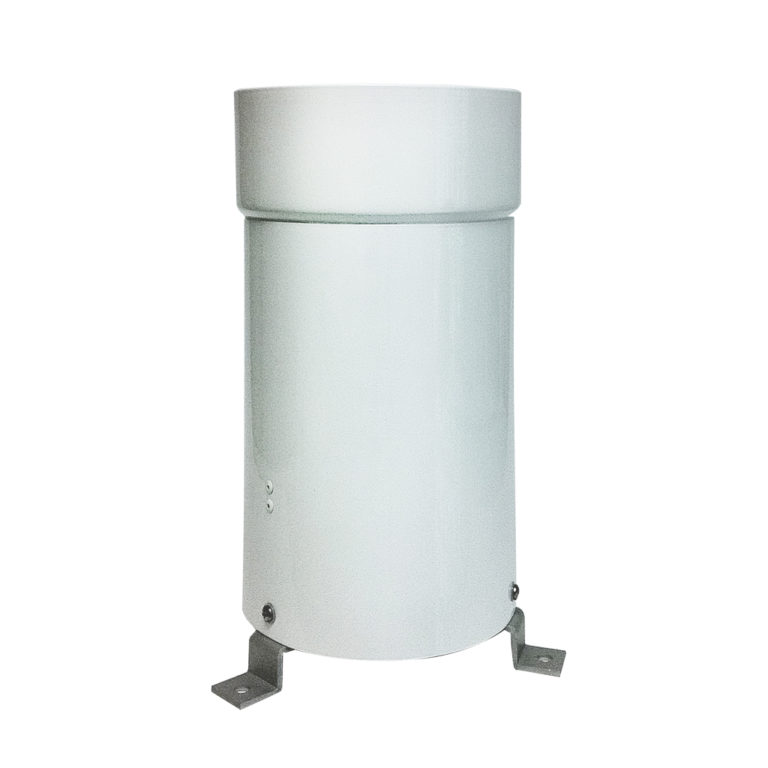

METONE 369-1 雨量站 (0.1mm/tip; Metal Tip Bucket)

Metal Tip Bucket

Standard Calibration: 0.1mm/tip

Funnel Area: 200cm sq

Accuracy: ±1% (0~30mm/hr) ±5% (30~120mm/hr)

Switch: Reed switch rated at 10mA, 28VDC (maximum)

Operating Temperature: -13~140°F (-25~60°C)

Thermostat Set Point for Funnel and Base Heater: 39.92°F (4.4°C)

Heaters:

- Funnel: 24VAC/DC, 75watt

- Base: 24VAC/DC, 50watt

Height: 1ft. (30.5cm)

Weight: 2.43lbs. (1.1kg)

Cable

- P/N 3519: Signal Cable Assembly; specify length in feet or meters

- P/N 3517: Power Cable Assembly; specify length in feet or meters
