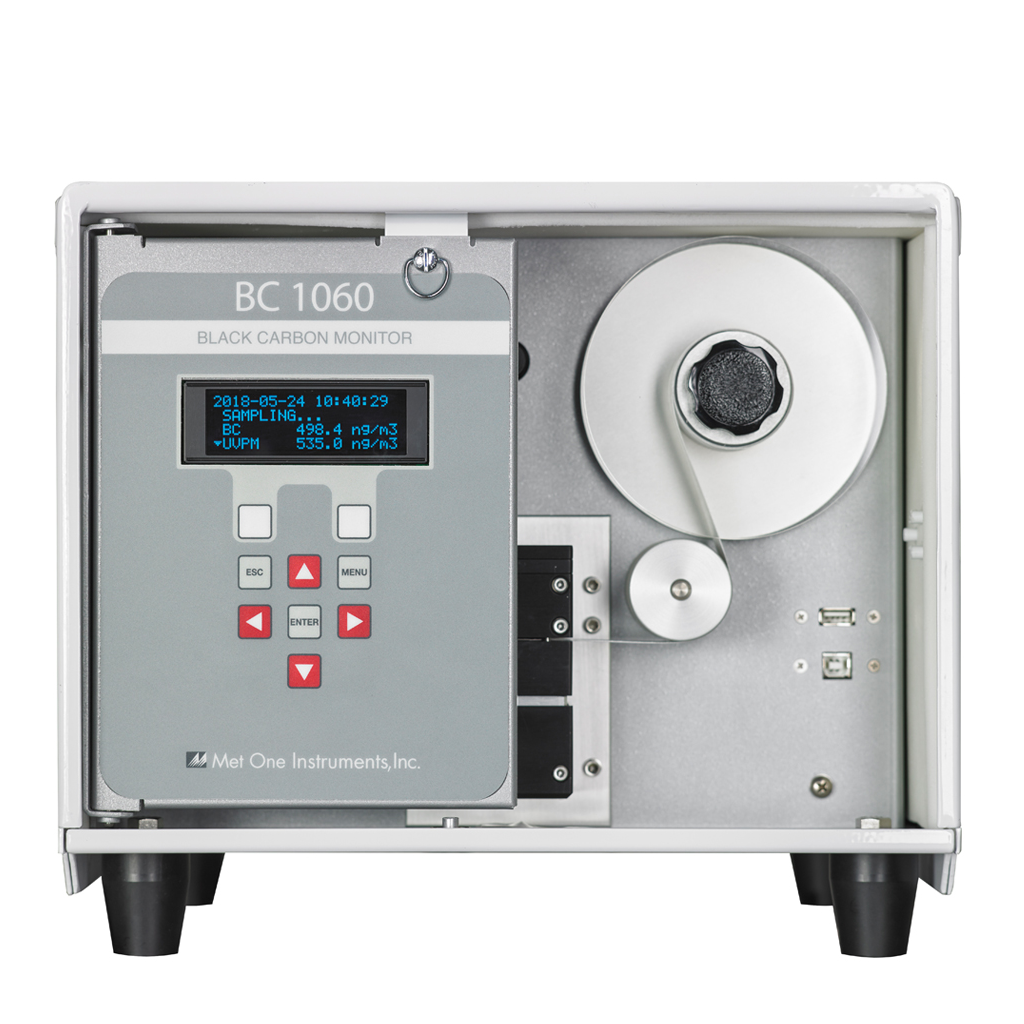

METONE BC-1060 炭黑监测仪 (2 channels: UV 370nm & IR 880nm)

Measurement Principle: Dual Wavelength Optical Absorption

Measurement Range: Near Infrared (880 nm LED) for elemental carbon

Data Display Resolution: Ultraviolet (370 nm LED) for elemental and organic carbon.

LDL (2σ):

  • <1ng/m3 to >100,000ng/m3 (effective)

  • 0.1ng/m3

  • < 8ng/m3 with 1 minute sample time

  • < 1ng/m3 with 1 hour sample time

Measurement Interval: 1, 5,10,15, 30, or 60 minutes.

Flow Rate: 2 LPM

Pump Type: Internal DC Powered Pump

Filter Tape: Reinforced glass fiber

Power Supply: 12V DC. Universal 100-240 VAC 50/60Hz input, 12 VDC 8.5A output supply included

Ambient/Operating Temperature: -50~70°C

Ambient Humidity Range: 0~90%RH, non-condensing

Internal Data Storage: 4 MB internal memory. 108,134 data records

External Data Storage: One USB Flash Drive Port

Data Collection Interface:

- Single serial output through either RS-232, USB

- Ethernet port. 1200 to 115200 baud.

Compatible Software: Comet™ software and USB/Ethernet driver CD included

User Interface: Menu-driven interface with 4x20 character backlit LCD display and dynamic keypad

Inlet: PM2.5 or PM1 cyclonic separator, 2LPM flow rate

Unit Weight: Approximately 35lbs (16kg)

Deployed Dimensions: Height: 30.5cm; Width: 35.6cm; Depth: 36.8cm
