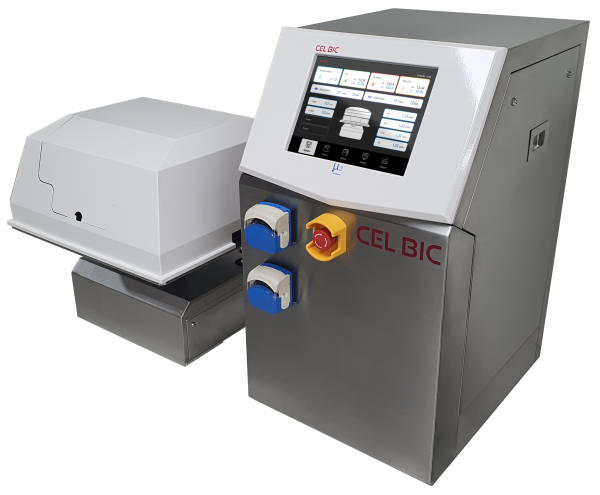

MicroDigital CELBIC 25 一次性生物反应器

Facility & Utility Requirements

Power: Controller: 220V - 2Phase, 60(50)Hz, 5A, 1.1KW

Electric Transformer: Input: N/A; Output: N/A

Gas Supply

Inlet Pressure: <600KPa;

Gas Tubes: Ø6.0mm;

Connection Hose Coupling (External): Ø6.0mm

Operative Environment:

Ambient Temperature: 5 – 40℃;

Relative Humidity Range: 50% (40℃) - 80% (31℃)

Process Control

Temperature Module(Heating Only – Electrical Heating Plates):

Temperature Control:RT - 70℃

Heating Capacity: 1 x 300W (220V)

Over Temperature Protection: Maximum 75℃ (Bi-metal Interrupted Heating)

Gassing Module Control Box:

MFC Flow Rates: 0.03 - 3.5 LPM

MFC Accuracy: ±1.0% F.S. (25℃)

4-Gas Mix (O2, N2, CO2, Air) With Headspace Outlet

DO Cascade: Available

Sensor & Measurement

Temperature Probe Pt 100:Temperature Range: 0 - 150℃;

         Display Resolution: 0.1℃;

          Amplifiers: 1

pH Single Use: pH Range: 6 – 10pH

         Display Resolution: 0.01pH

         Amplifiers: Maximum 2

         Recalibration Function: Available

DO Single Use: Saturation Range: 0 – 250%

          Display Resolution: 0.1%

          Amplifiers: Maximum 2

          Recalibration Function: Available

Load Cells: Load Cells: N/A; Weight Range Accuracy: N/A

Balance Substrate: N/A

External Signal Input: N/A

Pump Module

Internal Pumps: 2 (Longer Pump FG15-13, WM114)

Control Range (Fixed Speed): 5 – 59 rpm

Communication & Technical Data

Communication: Industrial Ethernet: Optional

Technical Data

Maximum Total Volume (L): 25

Working Volume (L): 5 – 12.5 (20 – 50%)

Rocking Rate (R/Min): 14 – 34 ± 1

Rocking Angle (º): 6 – 12 ± 0.5

Free Orbital Rocking Rate (R/Min): 14 – 34 ± 1

Free Orbital Rocking Angle (º): 6 – 12 ± 0.5

Sensor Clamps for Secure Fixation of Glass Fiber Cables: 2

Filter Heater: Available

Color Touch Screen: Available

Safety Measurement & Shut-Off: 30mbar

Measurement Data Storage: Optional SD Memory Card
