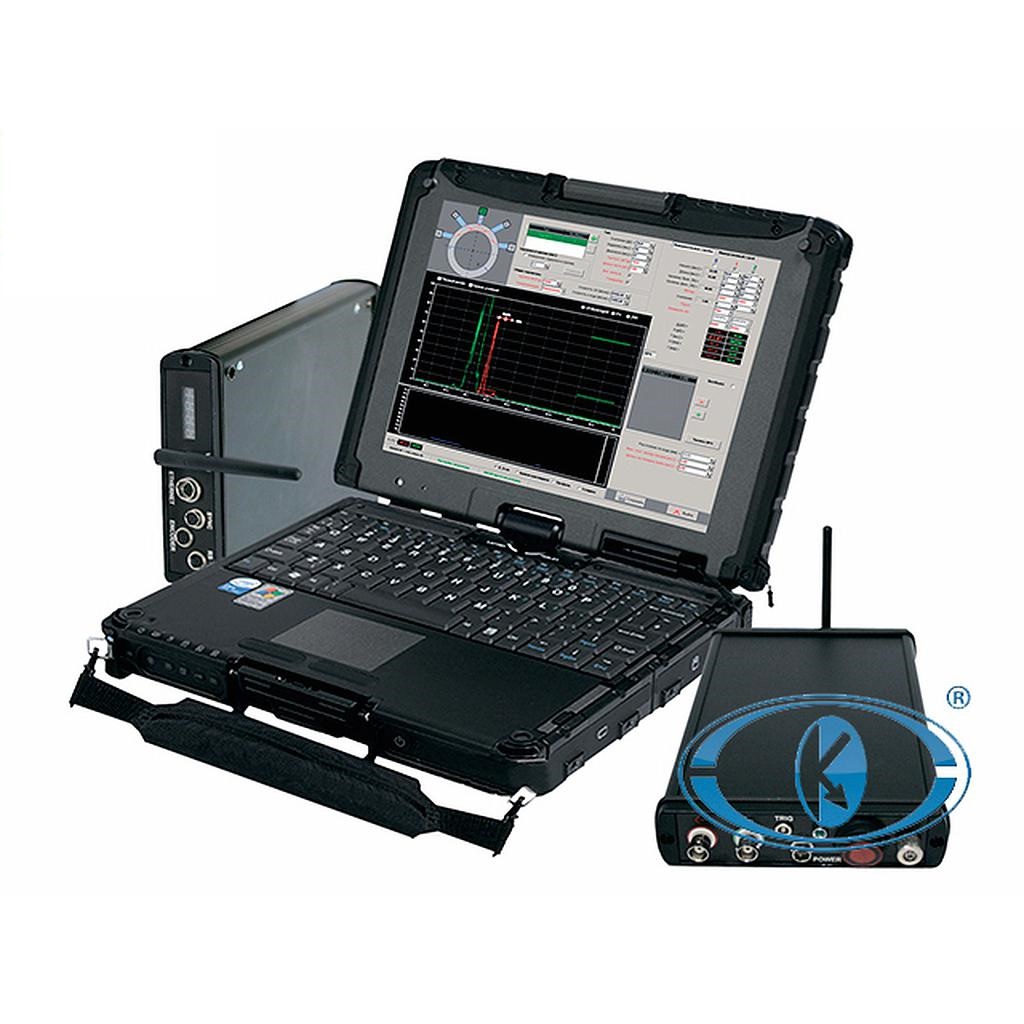

ОKО22М-UT 超声波探伤仪

PULSER
Pulse mode: Spike pulser, Square-Wave pulser
Pulse Voltage (SQ mode): 120-300 V in steps 10 V with tolerance 10%
Pulse falling/rising time: 5 ns
Pulse Width (SQ mode): 20 – 500 ns in steps 10 ns with tolerance 10%
PRF (SQ mode): 15 – 2000 Hz in steps 5 Hz, 3 automatic modes: Auto Low, Auto Med, Auto High, Manual
Pulse Voltage (spike mode): Low (100 V), High (400 V)
Pulse energy (spike mode): Low (30 ns), High (100 ns)
PRF (spike mode): 15 – 8000 Hz in steps 5 Hz, 3 automatic adjustment modes: Auto Low, Auto Med, Auto High, Manual
Damping: 50, 62, 150, 400
RECEIVER
Gain: 0 to 110 dB adjustable in steps of 0.2, 0.5, 1, 2 dB
Receiver input impedance: 400Ω±5%
Receiver bandwidth: 0.2-27 MHz (- 3 dB)
Digital filter setting: Eight digital filter sets standard (0.2-10 MHz; 2.0-21.5 MHz; 8.0-26.5 MHz; 0.5-4 MHz; 5-15 MHz; 5-15 MHz; DC-10 MHz )
Rectification: Fullwave, positive halfwave, negative halfwave, RF
Amplitude measurement: 0-110%
Reject: 0-80% FSH
Units: Millimeters, inch or microseconds
Range: 1 to 6000 mm
Velocity range: 1000 to 10000 m/s in steps of 1, 10, 100, 1000 m/s
Thickness measurements range: 0.6 to 6000 mm
Probe angle: 00 to 900 in steps 0.10, 1.00, 100
CONNECTORS
Probe connector: 2 BNC or 2 Lemo 1S
USB port: USB-2.0
Ethernet: +
Alarm output: +
Encoder: 1 Lemo (with the option of two encoders operation)
