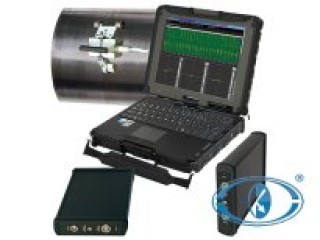

OKO EDDYCON D 涡流探伤仪


Overall dimensions: not more than 293 ´ 37 ´ 141 mm
Weight: not more than 1 kg
Number of EC probes connected to one EC channel: up to 32
ECP connectors: Lemo 12, Lemo00
Power: 2 V DC power
Time for operating mode setup: up to 1 min.
INPUTS/OUTPUTS
Ethernet: available
Triggering input: available
Headphones: available
Encoder input: 1 axis Encoder
MAIN METROLOGICAL SPECIFICATIONS
Protection level: IP 64
Environment temperature: from – 10º to +45 ºС
Atmospheric pressure: from 84 to 106,7 kPa
Environment humidity: (93 ± 3) % at 25 ºС
Full average life of the flaw detector: not less than 10 years
GENERATOR
Output voltage (double amplitude): 0,5; 1; 2; 4; 6 V, Peak-Peak
Frequency range: from 10 Hz tо 16 MHz
Synchronization type: internal, from encoder, from rotary ECP
RECEIVER
Gain: from 0 tо 70 dB with a step 1, 10 dB
Added gain: from 0 tо 30 dB
Input signal: not more than 0.5 V from Peak to Peak
Digital filters: 3 digital filters: High-frequency, Low-frequency, Bandpass
