Max. scan range: inch 236,22; mm 6000
Min. scan range: inch 0,039; mm 1
Velocity in the material: inch /µs from 0,0025 to 0,0375
m/s from 1000 to 15000
Scan delay: inch 472,44; mm 12000
Delay (in the wedge) µs: from 0 to 100
Frequency МHz: from 0,4 to 20
Initial pulse frequency: Hz from 30 to 1000
Gain: dB from 0 to 100
radio signal (without detection)
Noises cutoff: % from 0 to 80
Reconfigurable readings in А-scan: distance by the beam, amplitude in gates, defects depth coordinates, equivalent defect dimensions
Measurement resolution: inch 0,00039; mm 0,01
Defect alarm: sound, light, visual
Setups quantity: at least 100
Languages and interfaces: English, Russian, Chinese (additional languages are possible to the customer's order)
Operation time from the battery hour: at least 8
Power supply from AC
Screen size, W x H inch: inch 4,33 x 3,346; mm 110 x 85
Screen resolution, W x H: pixel 320 x 240
А-scan size, W x H x D: pixel 320 x 200
Overall dimensions : inch 9,72 x 5,79 x 3,15; mm 247 x 147 x 80
Weight: 3.5 kg
Operating temperature: ºF from +14 to +122;
ºC from minus 40 to +50
Protection from environmental impacts: IP 65 according to GOST 14254

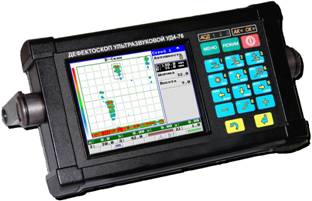

Electronic unit of the ultrasonic flaw detector UD4-76 1 pc.
Piezoelectric transducers (M8):
- П111-2,5-К12-003 1 pc.
Cable connection (PEP / electronic control unit) M8 × 2BNC 1 pc.
Cable connection (PC / electronic control unit) USB 1 pc.
Sync cable input 1 pc.
Sync cable output 1 pc.
Automatic charger Mascot Type 2015/td> 1 pc.
Battery power supply 1 pc.
AC Adapter BP-2 1 pc.
Headphones with Microphone 1 pc.
Scanner RSP-4 1 pc.
testing results on a PC 1 pc.
Manual UD4-76.23535778.04.01.06RE 1 copy.
Manual Type 2015.23535778.002 RE 1 copy.
User Guide Software
for processing the results on a PC monitor 1 copy.
Case for spare parts and accessories 1 pc.
Calibration certificate flaw UD4-76 1
