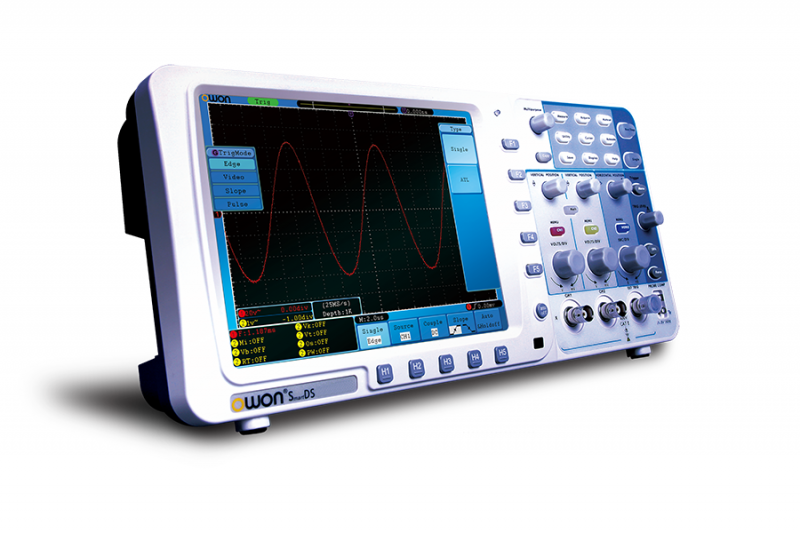

OWON SDS8202 Digital Storage Oscilloscope (200Mhz, 2Gsa/s, 2 CH)
制造商: OWON Model: SDS8202 来源: China - 联系
| Model | SDS8202 | ||||||
| Bandwidth | 200MHz | ||||||
| Sample rate | 2GS/s | ||||||
| Horizontal Scale(S/div) | 5ns/div～100s/div, step by1~2~5 | 2ns/div～100s/div, step by1~2~5 | 1ns/div～100s/div, step by1~2~5 | ||||
| Rise time | ≤5.8ns | ≤3.5ns | ≤1.7ns | ≤1.17ns | |||
| Display | 8” Colored LCD, 800x600 pixels, 65535 colors | ||||||
| Channel | 2 + 1 (External) | ||||||
| Record length | Max 10M | ||||||
| Input coupling | DC, AC , Ground | ||||||
| Input impedance | 1MΩ±2%, in parallel with 10pF±5pF | ||||||
| Channels Isolation | 50MHz: 100 : 1, 10MHz: 40 : 1 | ||||||
| Max. input voltage | 400V (PK-PK) (DC + AC PK-PK) | ||||||
| DC gain accuracy | ±3% | ||||||
| DC accuracy | Average﹥16: ±(3% rdg + 0.05 div) for △V | ||||||
| Probe attenuation factor | 1X, 10X, 100X, 1000X | ||||||
| LF respond(AC, -3dB) | ≥5Hz (at input, AC coupling, -3dB) | ||||||
| Sampling rate / relay time accuracy | ±100ppm | ||||||
| Interpolation | (sin x)/x | ||||||
| Interval(△T) accuracy(full bandwidth) | Single：±(1 interval time+100ppm×reading+0.6ns);Average>16：±(1 interval time +100ppm×reading+0.4ns) | ||||||
| Vertical resolution(A/D) | 8 bits resolution (2 Channels simultaneously) | ||||||
| vertical sensitivity | 2mV/div~10V/div | ||||||
| Trigger type | Edge, Pulse, Video, Slope, Alternate | ||||||
| Trigger mode | Auto, Normal, Single | ||||||
| Trigger Level | ±6 Divisions from screen center | ||||||
| Acquisition modes | Sample, Peak Detect and Average | ||||||
| Line/field frequency(Video) | Support standard NTSC, PAL and SECAM broadcast systems | ||||||
| Cursor Measurement | △V and △T between cursors | ||||||
| Automatic | Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B↑ , Delay A→B↓ , +Width, -Width, +Duty, -Duty | ||||||
| Waveform Math | ＋, －, *, / ,FFT | ||||||
| Waveform storage | 15 waveforms | ||||||
| Lissajous figure | Bandwidth | Full bandwidth | |||||
| Phase difference | ±3 degrees | ||||||
| Communication interface | USB, USB flash disk storage, Pass/Fail, LAN, VGA / COM (optional) | ||||||
| Cymometer | Available | ||||||
| Power supply | 100V-240V AC, 50/60HZ,CAT Ⅱ | ||||||
| Power consunption | < 18W | ||||||
| Fuse | 2A, T class, 250V | ||||||
Details
+ Main Features
- 60MHz～300MHz with dual channels;
- 500MS/s～3.2GS/s sample rate;
- 10M record length for each channel;
- Large 8-inch 800x600 pixels display;
- Autoscale function ;
- Pass/Fail function;
- Smart design with easy workplace;
- Battery (Optional);
- Multiple interface：USB；VGA；LAN
- Dimension: 340mm(L)×155mm(H)×70mm(W)
- Weight: 1.8kg (without battery)
+ Application
Electronic circui debugging Circuit testing
Design and manufacture
Education and training
Automobile maintenance and testing
