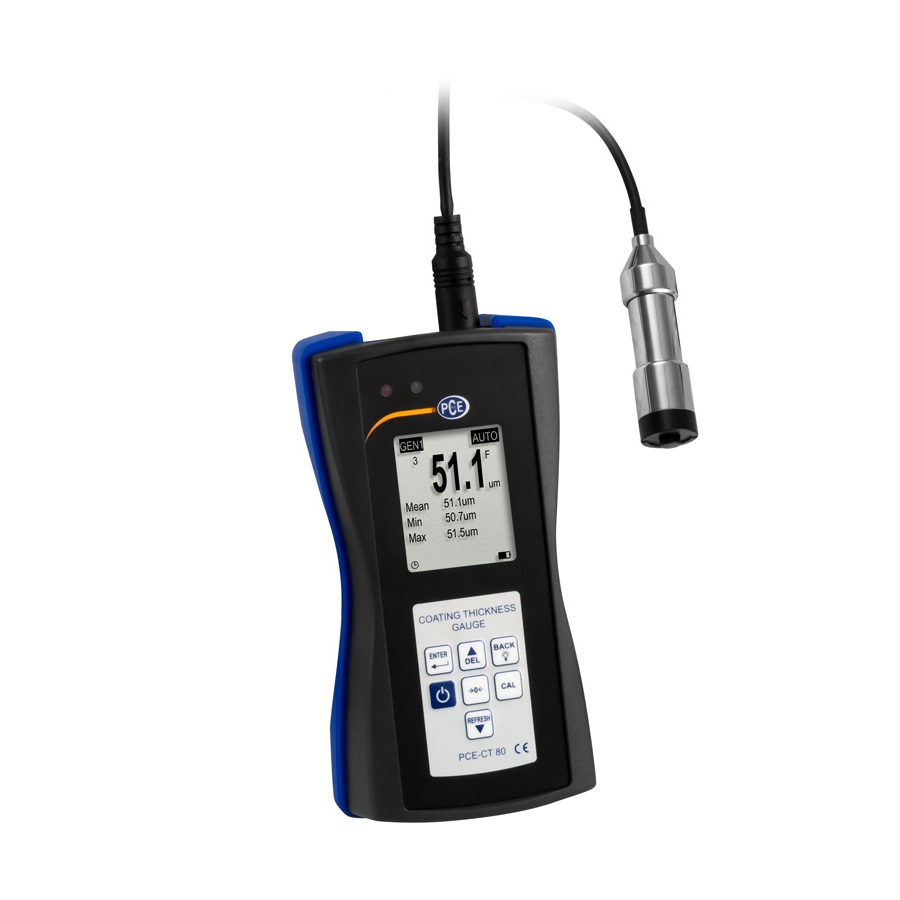

PCE CT 80-ICA 涂层测厚仪

Measuring range:

Fe: 0 to 5000 μm / 0 ... 196.9 mils (depending on sensor)

NFe: 0 to 3000 μm / 0 ... 118.1 mils (depending on sensor)

Accuracy: ± (2% of reading + 1 μm / 0.039 mils)

Resolution:

0.1 μm (0.0039 mils) (< 100 μm / 3.94 mils)

1 μm / 0.039 mils (> 100 μm / 3.94 mils)

Measurable materials:

Non-magnetic layers on steel, iron, ...

Non-electrically conductive layers on aluminum, copper, ...

Min. radius of curvature convex: 5 mm / 0.2 in

Min. radius of curvature concave: 25 mm / 1 in

Min. measuring surface: Ø17 mm / 0.7 in

Min. substrate thickness:

0.2 mm / 0.08 in (on magnetic materials)

0.05 mm / 0.002 in (on non-magnetic materials)

Probe mode:

Autom. Mode with material detection (Fe + NFe)

Magnetic mode (Fe)

Eddy current mode (NFe)

Measurement mode:

Single measurement

Continuous measurement

Calibration:

Multipoint calibration (1 ... 4 points for each group)

Zeroing

Units: μm, mm, mils

Data transfer: USB 2.0

Storage:

A volatile measuring group (DIR mode)

Four measuring groups with autom. Storage and max. 2000 readings (GEN mode)

Statistical functions: Number of Measured values, mean, minimum, maximum, standard deviation

Alarm: Display when the adjustable upper and lower alarm limits are exceeded

Operating time: Autom. Shutdown mode (3 min.)

Power supply: 3 x 1.5V AAA batteries

Display: 128 x 128 px LCD display

Indicators:

Battery status

Fault detection

Operating conditions:

0 ... 50°C / 32 ... 122°F

20 ... 90% RH not condensing

Storage conditions:

-10 ... 60°C / 14 ... 140°F

20 ... 90% RH not condensing

Dimensions: (L x W x H) 143 x 71 x 37 mm / 5.6 x 2.8 x 1.5 in

Weight: With sensor and batteries: approx. 271 g / < 1 lb

Delivery Scope

1 x PCE-CT 80 Coating thickness gauge

1 x PCE-CT 80-FN1.5 sensor

3 x AAA batteries

1 x User manual

1 x Transport case

1 x Set of standard films

1 x Calibration plates (Fe and NFe)

1 x ISO calibration certificate
