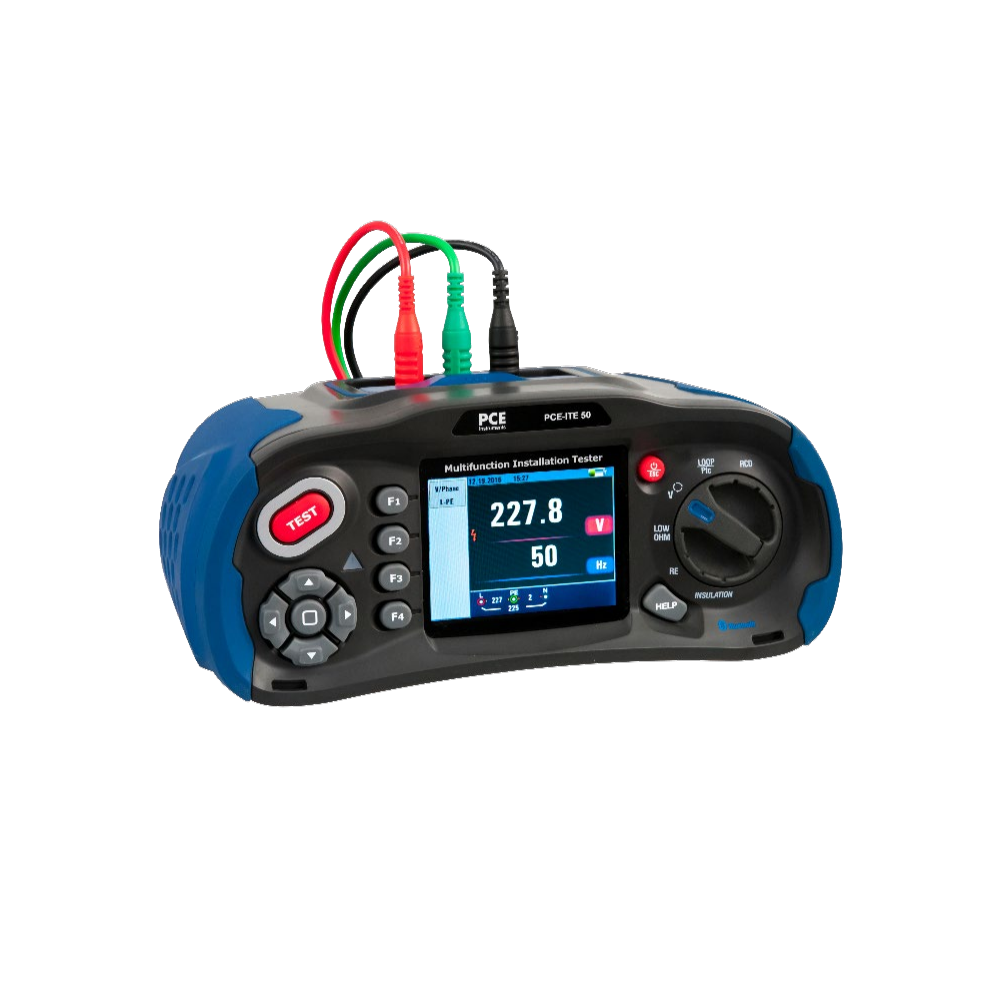

PCE ITE 50 绝缘测试仪 (1000 MΩ, 1000V)

Terminal voltage: 125V (0 ... 10 %) ~ 1000 V (0 ... 10 %)

Measuring range: 0.125 ... 1000 MΩ

Low Ohm

Measuring range: 2~ 2,000 Ω

Grinding resistance

L-PE (Hi-Amp): Load current 4.0 A

Measuring range: 0.23 ~ 999 Ω

RCD Test

RCD (In): 10-mA, 30-mA, 100-mA, 300-mA, 650-mA, 1 A

Factors: x 1/2, x1, x2, x5

Voltage range: 194 ... 260V AC (50/60 Hz)

RCD Types: Type A, Type B

Voltage measurement

Measuring range: 80...500 V AC/DC

Frequency measurement: 45...65 Hz

Grounding measurement

Measuring range: 0.00...2000 Ω

General specifications

Power supply: 8 x 1.2 ... 1.5V AA batteries

Protection class: IP 65

Display: 3.5" TFT (320 x 240 Pixel)

Operating environment

0 ... 45°C

0 ... 95% rH, non condensing

Measurements: 24.2 x 10.5 x 14.5 cm

Weight: 1.56 kg / 3.4 lbs

Delivery

1 x Insulation Tester PCE-ITE 50

1 x User manual

Details

Datasheet


Manual
