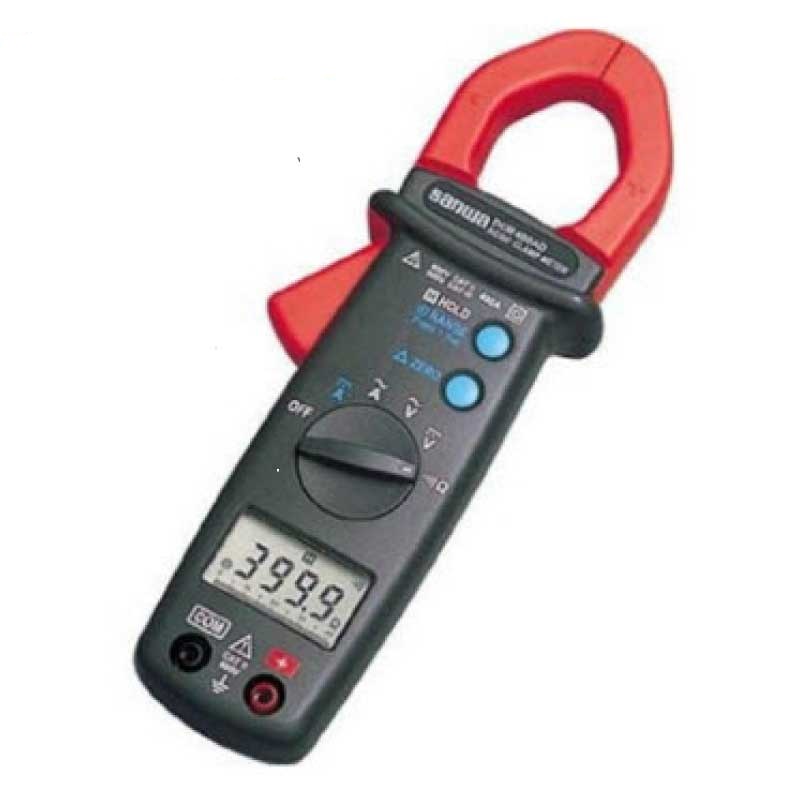

SANWA DCM400 Clamp Meter (400A)

ACA : 40/ 400A
ACV : 400/ 600V
DCV : 400/ 600V
Resistance : 400Ohm
Frequency ( A) : 20~ 4k/ 10kHz
Frequency ( V) : 4k/ 40k/ 400k/ 1MHz
Continuity : Buzzer sounds at less than approx. 40Ohm. Open voltage : approx. 1.5V

Bandwidth : 50~ 500Hz
Display : 4000
Clamp diameter/ Conductor size : 25mm/ 10x34mm
Withstand voltage : less than 3700Vrms
Battery : R03 x2
Size / Weight : H193xW50xD28mm / approx. 230g
Standard accessories included : Test lead ( TL 88) , Carrying case ( C DCM400) , Instruction manual

Detail

Manual

Datasheet

Features:
■4000 count / 42 segment analog bar graph
■Frequency measurement by clamping and using  test lead
■Data hold
■Continuity check buzzer
■Auto power off (30min.)
■Low battery power indication
Sampling rate : 2 times / sec. for numeral display
AC frequency
bandwidth : 50〜60Hz (ACA : 1.9%±5), 60〜500Hz (ACA :
2.5%±5), 50〜500Hz (ACV)

Option:
Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
Test lead : TL-21M, TLF-120
