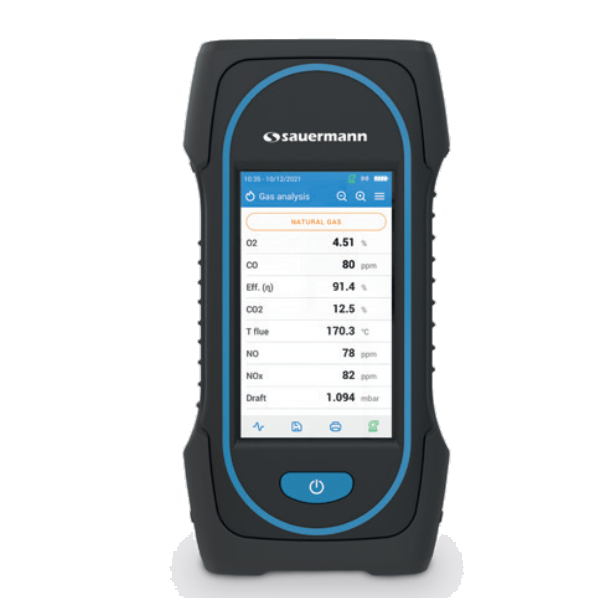

Sauermann SICA 130 KIT 2BS 燃烧气体分析仪 (O2, CO sensors)

Measuring range

O2: 0~25%

CO: 0~8000 ppm

CO2: 0~99.9%

NO (optional): 0~5000 ppm

Low NO (optional): 0~300 ppm

NOx (optional): 0~7500 ppm

Low NOx (optional): 0~450 ppm

Flue temperature: -20~+1250 °C

Air temperature: -20~+120 °C

Diffrential temperature: 0~1250 °C

Pressure: -200~+200 mbar

Excess air: 0 ~ 999%

Efficiency: 0 ~ 100% (Gross/ HHV (3))

Efficiency (condensation): 0 ~ 125% (Net/ LHV (4))

Stack Gas velocity: 0~99 m/s, 0~19,500 fpm

Dimensions: 19.4 x 9.9 x 4.9 cm

Weight: 350 g

Display: Color Touch Screen with Graphing; Size: 480 x 272 pixel

Keypad: 1 On-Off key

Material: ABS-PC

Protection: IP42

Connection: Wireless, USB

Power supply: Rechargeable battery, USB power supply; Li-Ion 5100 mA/h 3.6 V battery / Power supply voltage of the mains unit: 100-240 Vac, 50-60 Hz

Battery: Battery life > 8 h; Charging time: Fully charge: < 6.5 h; 50%: < 2.5 h

Memory: Internal memory up to 2000 tests

Temperature: from -5 to 45 °C,

Hygrometry: in non-condensing conditions (< 85% RH)

Maximum altitude: 2000 m

Languages: English, French, German, Spanish, Italian, Portuguese, Simplified Chinese

European Union Directives: 2014/53/EU (RED); 2015/863 EU (RoHS 3)

Regulations: EN 50379-1 and EN 50379-2; UNI 7129; UNI 11137; UNI 10389; UNI 10845; UL & cUL Certification; BS 7967:2015; BS EN 50543:2011; UNE 60670-10; ES.02173.ES

Details

Si-CA 130 Gas Analyzer Kit 2AS, includes two gas sensors (O2, CO), upgradable to three gas sensors (NO/NOx or Low NO/Low NOx), 300 mm probe rated to 800 °C with 3 m dual hose, wireless connection to mobile app and remote printer (option), rubber holster, water trap with filter, charger with plug set, USB-C cable, quick start guide, calibration certificate and vinyl carrying bag

Datasheet
