Shining3D-Metric-N 3D 摄影测量机(0.1*0.1*0.1~10*10*10m3)



Model
Shining3D-Metric-N

Accuracy
≤0.10mm/3m

Measuring Area
0.1*0.1*0.1~10*10*10m3

Ambient temperature
-20°~100°C
Reference standard
VDI 2634/1
Calibration
Self-calibration
Matching way
Automatic coding point match
Data transfer
Wireless transmission or flash card
Camera specification
SLR, 24mm lens,≥12,000,000 pixels
Align way
Automatic marking point alignment; Manual selected point alignment
Detail

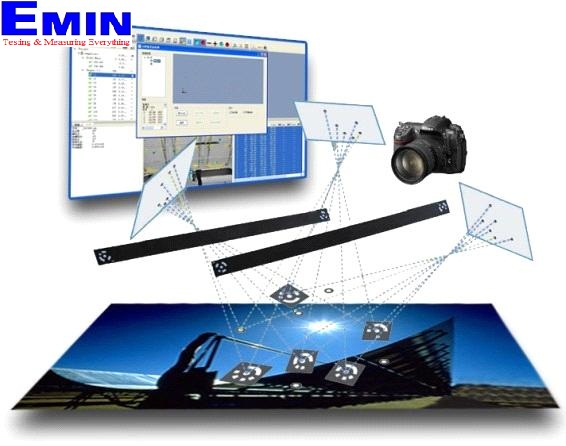

   Shining3D-Metric system(Photogrammetry System,Digital Photogrammetry ) is applied for assisting accurate and fast 3D measurement of large sized object:

Applications:
-  Rapid 3d measurement and inspection of medium or large work-pieces in meters or dozens of meters;
-  Error analysis of CAD model; inspection of size and geometric deformation;
-  Control overall accuracy of large work-pieces with 3D scanners;



Shining3D-Metric Photogrammetry
Characteristics Features|
1.Fast
-  Shining3D-Metric photogrammetry calculate accurate 3d space coordinates quickly and create an overall coordinate system, by which we can do error analysis to achieve rapid large work-piece 3d measurement;
2.Accurate
-  Shining3D-Metric photogrammetry control overall accuracy during large work-piece 3d measurement to lower accumulated error by working with 3D scanners;
