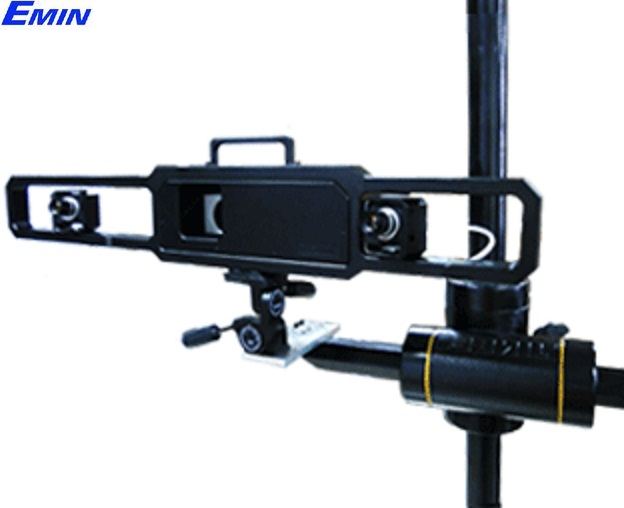

TitanScan 大型3D扫描仪,1200x900mm)



Model TitanScan
Application
large-scale objects scanning in defense enterprise, aerospace, automobile industry
Single scanning range
600mm*450mm – 1200mm*900mm(adjustable)
Accuracy
0.06mm-0.12mm
Resolution (Point Space)
0.47mm-0.94mm
Scannable Object size
300mm-3000mm
Scanning type
Non-contact & white light (as the form of photographed)
Image resolution
1.31 mega Pixels
Data format
ASC,STL
Scanning time
< 5S
Way of registration
Automatic and best-fit registration together
Detail
Model TitanScan
Application
large-scale objects scanning in defense enterprise, aerospace, automobile industry
Single scanning range
600mm*450mm – 1200mm*900mm(adjustable)
Accuracy
0.06mm-0.12mm
Resolution (Point Space)
0.47mm-0.94mm
Scannable Object size
300mm-3000mm
Scanning type
Non-contact & white light (as the form of photographed)
Image resolution
1.31 mega Pixels
Data format
ASC,STL
Scanning time
< 5S
Way of registration
Automatic and best-fit registration together
1. Large scale 3D scanning technology greatly raising the work efficiency
  • The biggest single scanning range of TitanScan 3D scanner is 1200mm*900mm (adjustable to 600mm*450mm). It is able to scan the large-scale object models by once only, reducing the workload, improving the measurement efficiency.
TitanScan 3D Scanner sample 3D data
Sample 3D data


2. 3D measuring accuracy guaranteed
  • Compared to the 3D scanning devices with small range, TitanScan large-scale 3D scanner can help users reducing the frequency of scanning, decreasing accumulated error. With the feature of automatic – registration, it can improve 3D measuring accuracy for large scale objects.
TitanScan 3D Scanner sample 3D data
Sample 3D data

3. User friendly design, easy to use
  • TitanScan 3D scanner optimizes the usage experience, improves the convenience of 3D scanning workflow by adopting holistic handles design.

4. Dust proof design, prolong the lifetime and decrease the maintain cost
  • The shell is made from aluminums alloy materials, partial made of ABS and acrylic materials. Adopt sealing design to keep away dust.

Specifications

  TitanScan 3D scanner_Shining3D-Scanner
