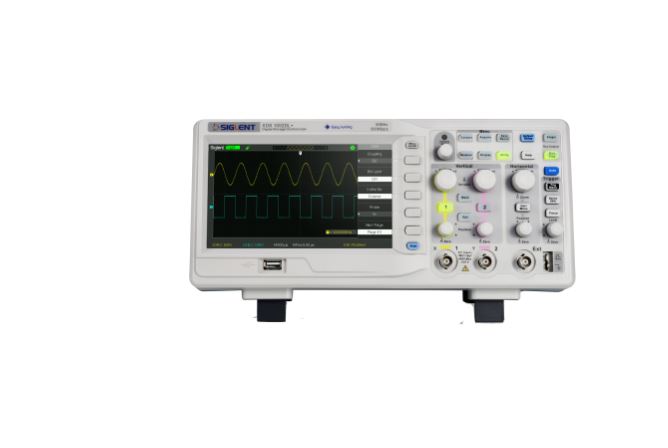

Siglent SDS1102DL 数字示波器(100Mhz,2Ch,500MSa / s)



odel



SDS1102DL



Bandwidth



100MHz



Channels

2CH+1EXT

Real time sampling rate

500MSa/s

Equivalent sampling rate


50GSa/s

Memory depth

32k

Rise time



< 3.5ns



Input impedance

1MΩ‖17pF

Time base range



5ns/div-50s/div



Scan: 100ms-50s/div

Vertical sensitivity

2mV-10V/div

Vertical resolution

8bit

Trigger source

CH1, CH2, Ext, Ext/5, AC Line

Trigger types

Edge, Pulse, Video, Slope, Alternative

Math Operation

+, -, ×, ÷, FFT

Digital filter

High pass, Low pass, Band pass, Band Stop

Max input voltage

±400V (DC+AC Pk-Pk), CAT 1, CATII

Internal storage

2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms

External storage

Bitmap save, CSV save, Waveform save, Setting save

Language

English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic

Interface

USB Host, USB Device, RS-232, Pass/Fail out

Display

7 inches(178mm) color TFT(480*234) LCD

Power

AC 100-240V, 45Hz-440Hz, 50VA Max

PC software

Can through the computer remote control oscilloscope, extraction waveform analysis data

Remark

With original source seamless connection, form signal collection, produce integration system

Detailed performance parameters and technical index please refer to《SDS1000DLSeries Datasheet》

Optional Accessories:

1. BNC Coaxial cable
2. RS-232 Serial line
3. USB-GPIB
4. EasyDsoLib Software setups (free)
5. Oscilloscope portable bag

Detail



odel



SDS1102DL



Bandwidth



100MHz



Channels

2CH+1EXT

Real time sampling rate

500MSa/s

Equivalent sampling rate


50GSa/s

Memory depth

32k

Rise time



< 3.5ns



Input impedance

1MΩ‖17pF

Time base range



5ns/div-50s/div



Scan: 100ms-50s/div

Vertical sensitivity

2mV-10V/div

Vertical resolution

8bit

Trigger source

CH1, CH2, Ext, Ext/5, AC Line

Trigger types

Edge, Pulse, Video, Slope, Alternative

Math Operation

+, -, ×, ÷, FFT

Digital filter

High pass, Low pass, Band pass, Band Stop

Max input voltage

±400V (DC+AC Pk-Pk), CAT 1, CATII

Internal storage

2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms

External storage

Bitmap save, CSV save, Waveform save, Setting save

Language

English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic

Interface

USB Host, USB Device, RS-232, Pass/Fail out

Display

7 inches(178mm) color TFT(480*234) LCD

Power

AC 100-240V, 45Hz-440Hz, 50VA Max

PC software

Can through the computer remote control oscilloscope, extraction waveform analysis data

Remark

With original source seamless connection, form signal collection, produce integration system

Detailed performance parameters and technical index please refer to《SDS1000DLSeries Datasheet》

Optional Accessories:

1. BNC Coaxial cable
2. RS-232 Serial line
3. USB-GPIB
4. EasyDsoLib Software setups (free)
5. Oscilloscope portable bag
