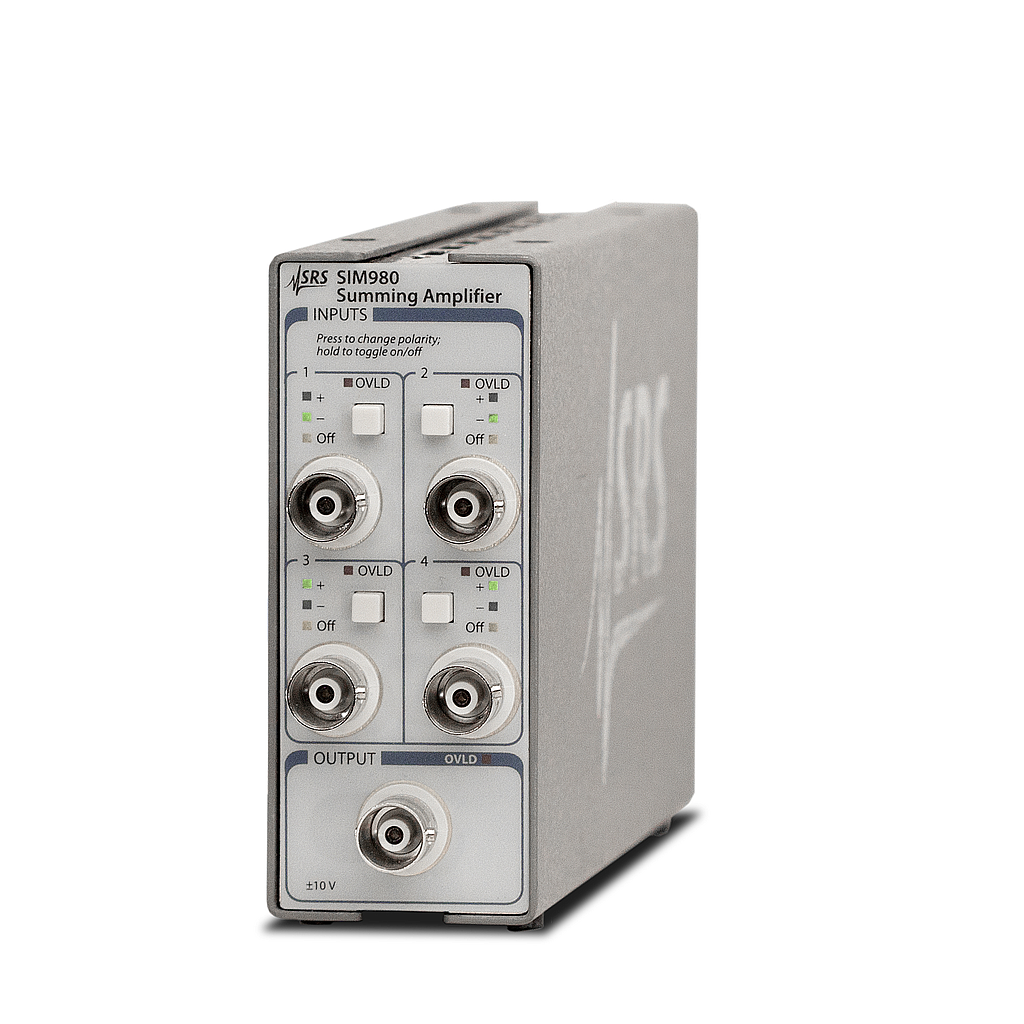

SRS SIM980 加法放大器 (DC - 1 MHz, 1×)

Number of inputs: 4

Function: Inverting, non-inverting or off

Gain: 1×

Impedance: 1 MΩ

Bandwidth: DC to 1 MHz

Output noise: 60 nV/√Hz at 1 kHz

Crosstalk: −80 dB at 1 kHz

Offset: ±100 µV (after 5 min. warm up)

Max. input & output: ±10 V

Input slew rate: 40 V/µs

THD: 0.01 % (80 dB) at 1 kHz

Output slew rate: 75 V/µs

Operating temperature: 0 °C to 40 °C (non-condensing)

Interface: Serial via SIM interface

Connectors: BNC (5 front-panel, 1 rear-panel); DB15 (male) SIM interface

Power (max.): Power supplied by the SIM900 Mainframe, or optionally by a user-supplied DC power supply (±15 V and +5 V).

Dimensions: 1.5" × 3.6" × 7.0" (WHL)

Weight: 1.5 lbs.
