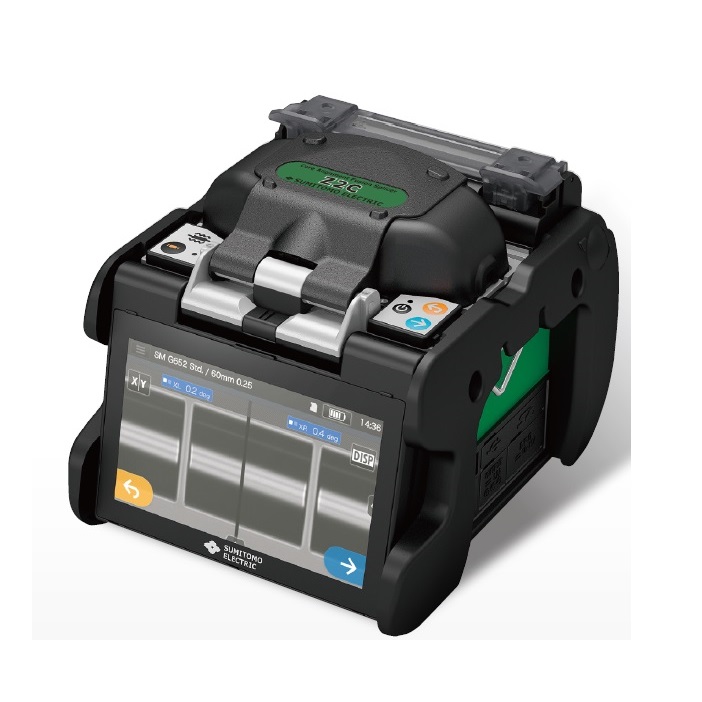

SUMITOMO Z2C 芯对准熔接器 (Splice time 6s; Heating time 15s)

Optical fiber requirements:

- Material: Silica glass

- Fiber count/Profile types: Single / SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655), BIF(G.657)

- Fiber diameter: Cladding diameter: 80 - 150µm; Coating diameter : 100-1.000µm

- Cleave length: 5-16mm with coating clamp

Standard performance

- Splice loss (typical): SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB

- Return loss (typical): 60dB or greater

- Splice time (typical): 6sec (SM G652 Quick Mode), 8sec (Auto Mode)

- Heating time: 15sec (FPS-61-2.6 sleeve, S60mm 0.25)

- Splice & Heat cycles per battery full charge: Approx. 300 (BU-16)

- Fiber view & magnification: 2 CMOS cameras observation

                                              350X (zoom: 700X) for X or Y single axis view, Max. 350 for both X & Y dual axis view

- Proof test: 1.96 - 2.09N

- Applicable protection sleeve: 60mm, 40mm & Sumitomo Nano sleeves

Programs

- Splice programs: Max. 300, 40 are pre-optimsed, 260 editable by user

- Heating programs: Max. 100, 23 are pre-optimsed, 77 editable by user

Functions

- Splice image capture/ Splice data storage: 200 images /10,000 splice data (internal memory only) 50,200/20,000 (with 16GB SD card)

- Automatic fiber identification: SMF/MMF / Other

Size/Weight

- Size: 128(W) x 154(D) x 130(H) mm (without anti-shock rubber)

- Weight: 1.7kg (without Battery) / 2.0kg (with Battery BU-16)

- Monitor: 5.0" touch screen color LCD display

Terminals:

- DC output: DC 12V (for IR-6)

- USB port: USB 2.0 (mini-B type)

- Storage media: SD/SDHC memory card MAX32GB

Power supply:

- AC input: AC100~240V, 50/60Hz (ADC-16)

- DC input: DC 10~15V

- Battery pack: Li-ion 10.8V, 6.400mAh (BU-16)

Electrode life: 6.000 arc discharges

Details

VIDEO


Datasheet
