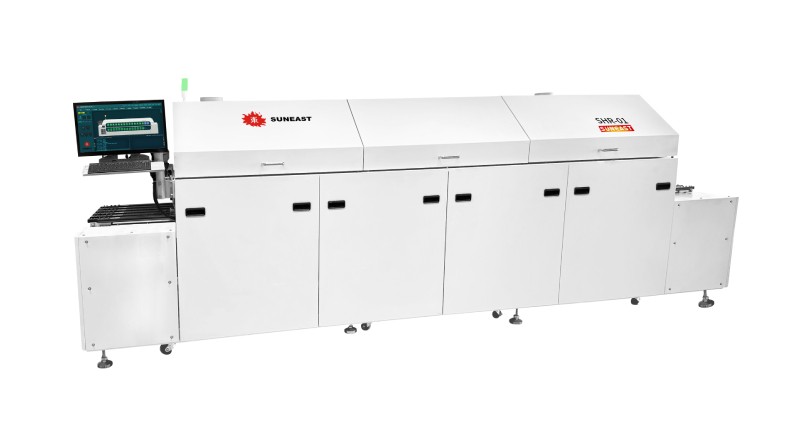

Suneast SHR-01G 直列隧道式烘箱 (Min 50mm - max 400mm)

Dimension: L4200xW1300xH1685mm

Weight:        Approx.1400kg

Power Supply:        3P 5L 380V 50/60Hz

Control system:        PC+PLC

Total Power:        Approx.32KW

Conveying Type:      Stainless steel anti-jam chain

Guide fixed mode:    Front end fixed

Conveying width:   min 50mm - max 400mm

Product height (including fixture):     max 95mm

Infeed height:        900±20mm

Conveying Speed:        100-500mm/min

Speed control mode:        Closed Ioop stepless speed regulation by inverter

Conveying direction:        L-R(Option:R-L)

Temperature control mode:        PID

Temperature range:        Room temp~200℃

Heating system:        Heating on the channel

Heating zones:        5 heating zones

Heating zone length:        3000mm

Cooling zone length:        N/A        (Option)

Warming up time:        Approx.15min        (Set temp 150℃)

Running power:        Approx.6kW

Temperature value display accuracy:        1℃

Abnormal alarm:        Three-color signal light+human-machine interface alarm

Exhaust requirement:        2-Φ150 air outlet,the exhaust air volume of a single air outlet is about 15m³/min

Parameter storage:        Process Data and status stotage

Power cut protection:        Equipped with UPS

Air source:        N/A

*1.Note:According to production capacity requirements, the recommended heating zone number is: 4 heating zones, 5 heating zones, 8 heating zones, 9 heating zones, 10 heating zones, 12 heating zones, which can be customized.
