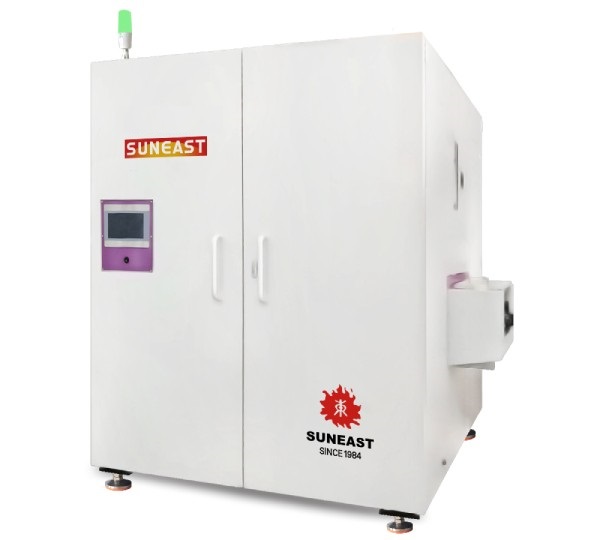

Suneast SVR-300 立式固化炉 (W320*L410mm)

Machine Dimension:     L2390xW1870xH2150mm

Machine Weight:   Approx.1800kg

Product size:    MAX：W320*L410mm

Inlet height:        900±20mm

Storage type:        Vertical storage

Storage quantity:        Max product storage number：60pcs (Can be customized)

Pitch height:        Integral multiple of 25.4mm        (Can be customized)

Temperature range:        Room temp~200℃

Warming up time:        Approx.15min        (Set temp 150℃)

Running power:        Approx.6KW

Total power:        45KW

Temperature control accuracy:        ±1℃

Abnormal alarm:        3-color signal lamp+Human-machine interface prompt

Power supply:        3P5L  380V  50/60Hz
