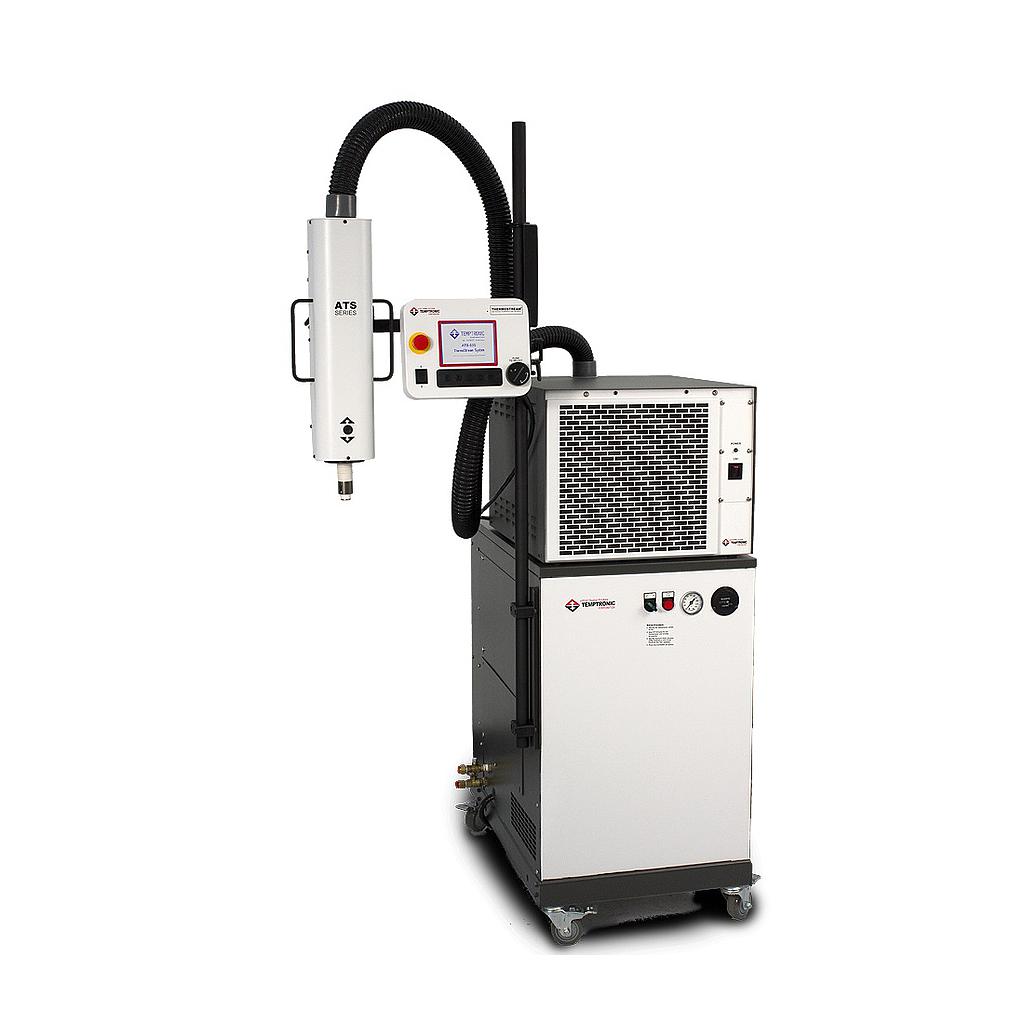

Temptronic ATS-535 便携式温度测试环境 (-60~225°C)

Power Requirements

Chiller Power: 220 ±10% VAC, 50/60Hz, 16amp

Compressor Power: 220 ±10% VAC, 50/60Hz, 30amp

Temperature Range: -60 to +225°C

Transition Rates:

Heating: -40 to +125°C, <12 sec

Cooling: +125 to -40°C, <40 sec

System Airflow Output: 5scfm (2.4 l/s) Fixed Flow Rate

Temperature control

Temperature Display & Resolution: +/- 0.1°C

Temperature Accuracy: 1.0°C (when calibrated against NIST standard)

DUT Temperature Control: Proprietary control algorithm enables DUT temperature to be directly controlled

DUT Sensor Ports: Thermocouples (type T & K)

Operating environment

Operating Temperature: +20°C ~ +28°C; +23°C nominal

Humidity: 0 ~ 60%; 45% nominal
