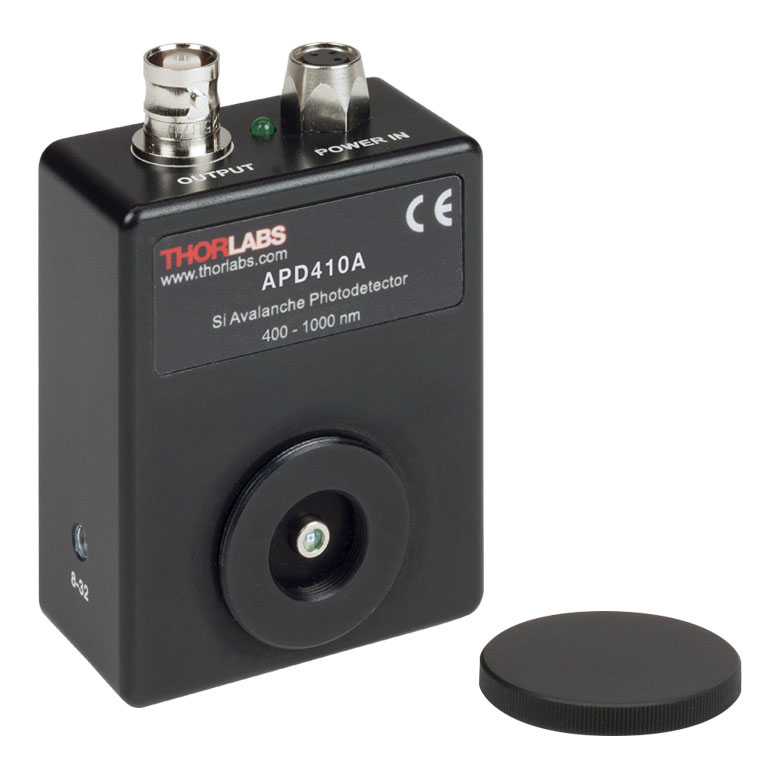

THORLABS APD410A 可变增益温度补偿硅雪崩光电探测器 (400 - 1000 nm, 8-32 Taps)
制造商: THORLABS Model: APD410A - 报价要求
- 联系
Key Specifications(a)
Detector Type: Silicon APD
Wavelength Range: DC - 100 kHz
Output Bandwidth (3 dB)(b): DC - 10 MHz
Active Area Diameter: 1.0 mm
Typical Max Responsivity: 53 A/W @ M = 100(d)
Transimpedance Gain: 250 kV/A (50 Ω) 500 kV/A (High-Z)
Max Conversion Gain(e): 26.5 × 10^6 V/W
M Factor Adjustment Range: 10 - 100 (Continuous)
M Factor Temperature Stability(f): ±2% (Typical); ±3% (Max)
Saturation Power (CW): 0.15 µW @ M = 100(d) 1.50 µW @ M = 10
Minimum NEP(g): 0.04 pW/√Hz
Dimensions (H x Wx D): 2.97" x 2.20" x 1.09"
(a) For a complete list of specifications and responsivity graphs, please see the manual. Data are valid at 23 ± 5 °C and 45% ± 15% relative humidity (non-condensing).
(b) At Maximum Gain Setting
(c) At 600 nm
(d) At 800 nm
(e) At the Peak Responsivity Wavelength
(f) Within the 23 ± 5 °C temperature range.
(g) For more information on how NEP is calculated, please see Thorlabs' Noise Equivalent Power White Paper.
