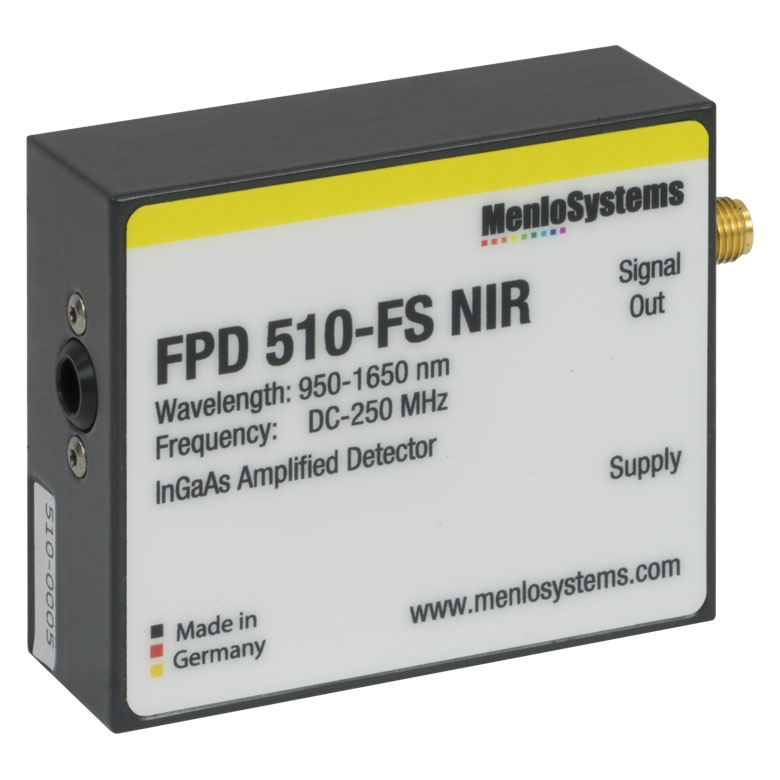

THORLABS FPD510-FS-NIR InGaAs放大光电探测器 (950 - 1650 nm, Fixed Gain, M4 Mounting Hole)

Wavelength Range: 950 - 1650 nm

Bandwidth Range: DC - 250 MHz

Rise Time: 2 ns

Gain Hi-Z Load: -

Gain 50 Ω Load: 1.5 x 10^5 Vpp/W(f) 5 x 10^4 Vpp/W(g)

NEP: 3.2 pW/Hz^1/2

Active Area(c): 0.07 mm^2 (Ø0.3 mm)

Operating Temperature Range: 10 to 40°C

Power Supply Included: Yes

(c) View an image of the detector element in manual.

(d) The detector active area surface is flush with the front of the housing.

(e) The time required for the signal to rise from 10% to 90% of the maximum value.

(f) Femtosecond Pulsed Input

(g) CW Input
