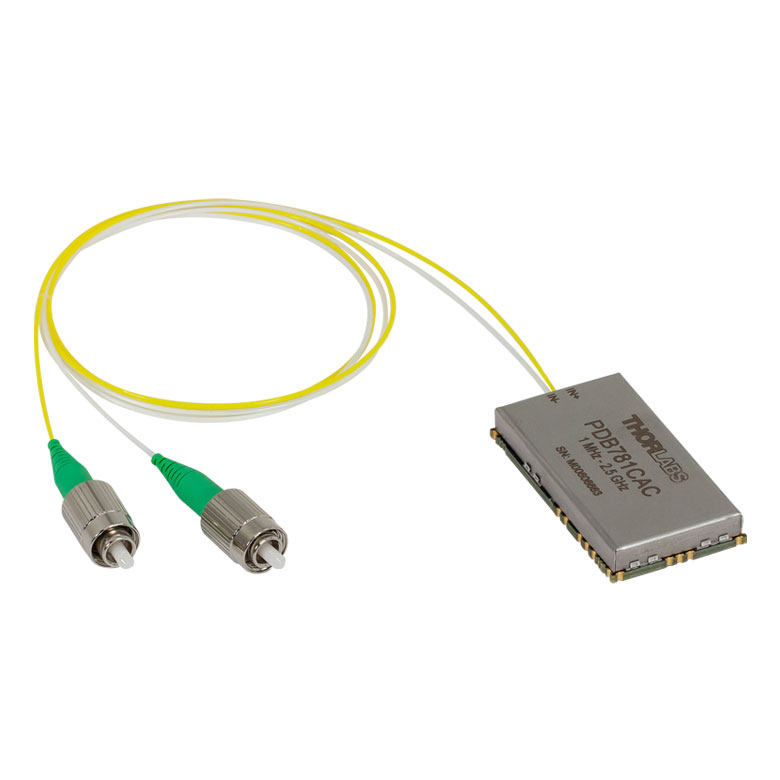

THORLABS PDB781CAC 平衡放大光电探测器 (980-1625 nm, FC/APC)

Wavelength Range: 980 - 1625 nm

Typ. Max Responsivity: 0.70 A/W at 1050 nm

Bandwidth (3 dB): 1 MHz - 2.5 GHz

CMRR(c): >20 dB (Typ. >25 dB)

Transimpedance Gain: 5 x 10^3 V/A

Monitor Output Bandwidth (3 dB): DC - 150 kHz

Fiber Connector: FC/APC(d)

Fiber Type: HI1060

(a) For complete specifications, see manual

(b) All specifications are valid at 23 ± 5 °C and 45 ± 15% rel. humidity (non-condensing).

(c) Common Mode Rejection Ratio

(d) 2.0 mm Narrow Key FC/APC Connector
